Thomas & Betts Vac Int 15kv 20ka 600a Mo12vdc
Thomas & Betts #:MVI32115A6E6MO12D
SKU: ABBIMVI32115A6E6MO12D
UPC: 075114353120
SKU: ABBIMVI32115A6E6MO12D
UPC: 075114353120
Your Price: $80,956.23 / EA
Thomas & Betts Vac Int 15kv 20ka 600a Mo12vdc
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description

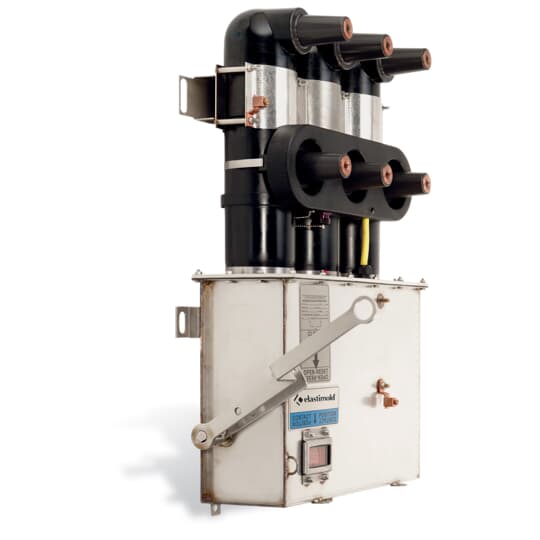

Molded Vacuum Interrupter, 3-Phase, 15KV/20KA, 600 Amps T-BODY / 600 Amps Bushings End and Main Interface - 600 Amp T-Body Interface, 12/24VDC Motor Controller (includes standard 30 foot cable).
| Type: | Molded Vacuum Interrupter - Triple Phase |
| Special Features: | EPDM Molded Rubber Insulation. Field Programmable with a Wide Range of Time-Circuit Characteristic (TCC) Curves and Trip Settings. Control Monitors the Circuit Condition |
| Application: | Make, Carry and Automatically Interrupt Currents |
| Standard: | ANSI C37.60, IEEE 386, ANSI C57.12.28 |
| Amperage Rating: | 600 A |
| Length: | 32-7/8 in , 835.025 mm |
| Material: | EPDM Rubber Insulation |
| Phase: | Triple Phase |
| Operating Temperature: | -40 to +65 C |
| Voltage Rating: | 15 kV |
