Panduit T100FR-CY Spiral Wrap
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product T100FR-CY Spiral Wrap
Specification Sheet
Detailed Description

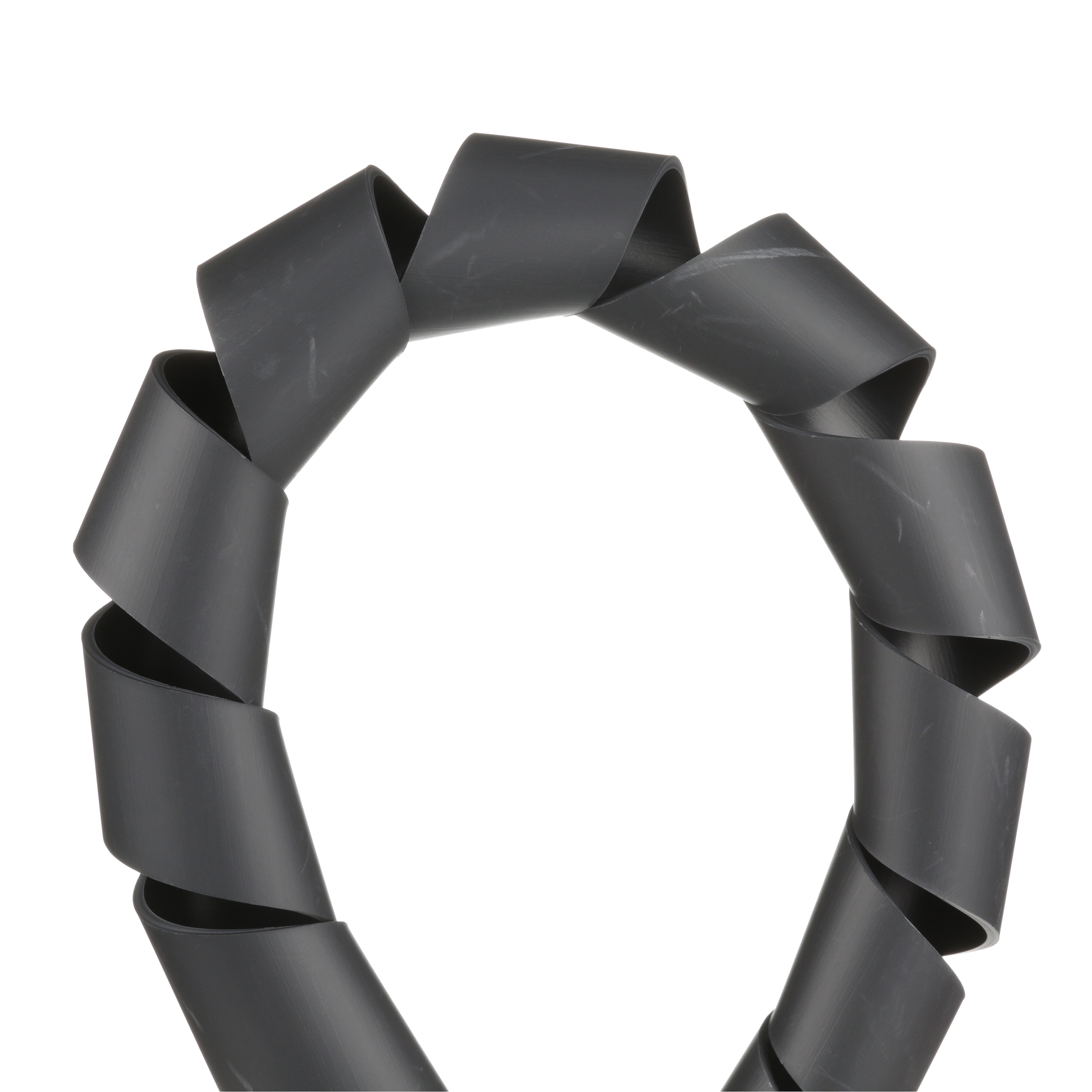

The T100FR-C20Y Flame Retardant Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection for use with irregular shapes. Rated for use up to 122F (50C). 00.12" (3.2 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.875" to 6" (22.2 mm to 152.4 mm). Color Natural.
| Material: | Polyethylene |
| Type: | Spiral Wrap |
| Application: | (1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Color: | Natural |
| Temperature Rating: | 122 F |
| Length: | 100 |
| Special Features: | NULL |
| Maximum Bundle Diameter: | 6 In. |
| Minimum Bundle Diameter: | 0.87 In. |
| Outside Diameter: | 1 |
| Wall Thickness: | 0.07 In. |
| Standard: | UL Recognized - E141152 |
