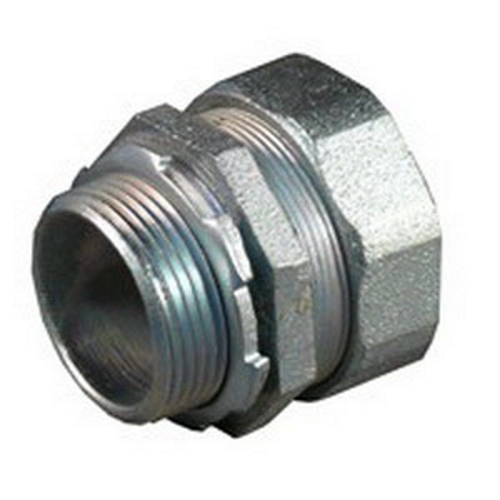

Appleton Electric Straight Liquidtight Strain Relief Connector, Size: 2 IN, Conductor Range: 1.531 - 1.78 IN, Material: Machined Steel, Nema Rating: NEMA 3R, Connection...
Appleton Electric #:CG-153200S
SKU: APPLCG-153200S
UPC: 781381460118
SKU: APPLCG-153200S
UPC: 781381460118
Your Price: $74.55 / EA
Appleton Electric Straight Liquidtight Strain Relief Connector, Size: 2 IN, Conductor Range: 1.531 - 1.78 IN, Material: Machined Steel, Nema Rating: NEMA 3R, Connection...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 2 IN STL L-T CRD&CBL CONN L
Specification Sheet
Warranty
Detailed Description
Straight Liquidtight Strain Relief Connector, Size: 2 IN, Conductor Range: 1.531 - 1.78 IN, Material: Machined Steel, Nema Rating: NEMA 3R, Connection: Threaded Hub, Dimensions: 3 IN Height, Standard: Class I, Division 2, Class II, Div
| Size: | 2 in |
| Application: | For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable |
| Connection: | Threaded Hub |
| Special Features: | For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which |
| Type: | Straight Liquidtight Strain Relief Connector |
| NEMA Rating: | NEMA 3R |
| Material: | Machined Steel |
| Standard: | Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178 |
| Conductor Range: | 1.531 - 1.78 |
