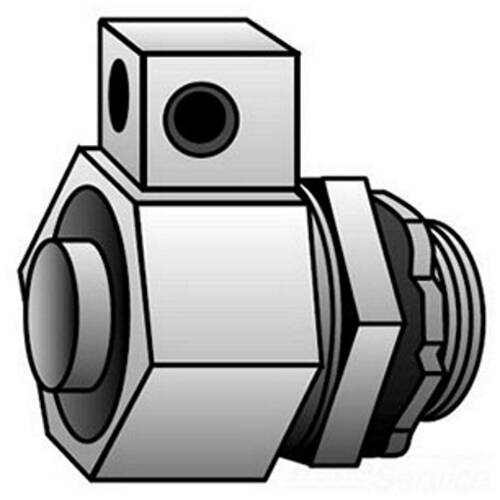

O-Z/Gedney 4Q-100L 1 IN STR CONN LFMC W/LUG
$15.24
O-Z/Gedney #: 4Q-100L
SKU: OZGE4Q-100L
UPC: 783126617528
SKU: OZGE4Q-100L
UPC: 783126617528
| Finish: | Zinc Electroplated |
| Size: | 1 IN |
| Application: | For Liquidtight Flexible Metal Conduit |
| Conductor Range: | 14 - 4 |
| Connection: | Compression X Tapered MNPT Hub |
| Material: | Malleable Iron Body And Nut, Steel Ferrule |
| NEMA Rating: | NEMA 4 |
| Special Features: | 4Q-L fittings have plain throat (non-insulated); Used to secure, ground and seal liquidtight flexible metal conduit to boxes and enclosures; Hot dip or mechanically galvanized finish optionally available; Positive grounding type; Grounding lug is cast as |
| Standard: | Third Party Certification: UL File Number E-24264, CSA 9795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15( |
| Type: | Type 4Q-L Grounding Liquid Tight Straight Connector With Lug |
