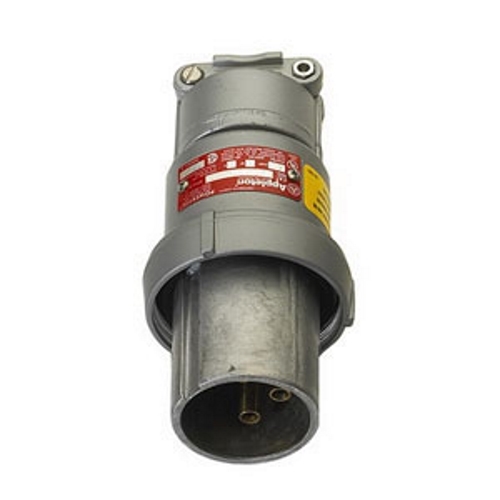

Appleton Electric Powertite Grounding Style 1 Metallic Clamping Ring Plug, Number Of Poles: 3, Number Of Wires: 3, Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra F...
Appleton Electric #:ACP3033BCRS
SKU: APPLACP3033BCRS
UPC: 781381710466
SKU: APPLACP3033BCRS
UPC: 781381710466
Your Price: $302.62 / EA
Appleton Electric Powertite Grounding Style 1 Metallic Clamping Ring Plug, Number Of Poles: 3, Number Of Wires: 3, Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra F...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 30AMP PLUG 3W-3P STYLE 1
Specification Sheet
Warranty
Detailed Description
Powertite Grounding Style 1 Metallic Clamping Ring Plug, Number Of Poles: 3, Number Of Wires: 3, Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex), Amperage Rating: 30 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phas
| Number of Poles: | 3 |
| Connection: | Pressure Wire Terminal |
| Number of Wires: | 3 |
| Phase: | 3 |
| Special Features: | For reverse service (generator applications); Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal |
| Standard: | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| Type: | Grounding Style 1 Metallic Clamping Ring Plug |
| Voltage Rating: | 600 VAC At 50 - 400 HZ, 250 VDC |
| Wire Size: | 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex) |
| Application: | For ADR3033 Receptacle And ARC3033BC Connector Body |
| Environmental Conditions: | Temperature Rating: -40 To 107 DEG C |
| Amperage Rating: | 30 AMP |
| Material: | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| NEMA Rating: | NEMA 3, 3R, 4, 4X |
