Thomas & Betts Int,1ph,27kv,600a/600a,no Ctrl
Thomas & Betts #:MVI1-21-27-66-SM
SKU: ABBIMVI1-21-27-66-SM
UPC: 075114354523
SKU: ABBIMVI1-21-27-66-SM
UPC: 075114354523
Your Price: $25,331.43 / EA
Thomas & Betts Int,1ph,27kv,600a/600a,no Ctrl
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description

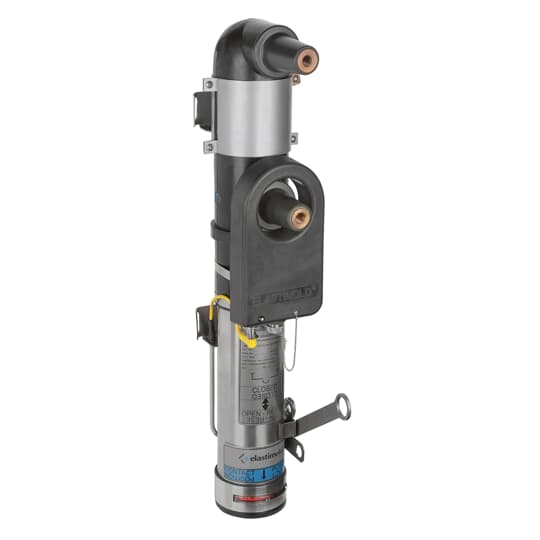

Molded Vacuum Interrupter, 1-Phase, 27kV/12.5kA, Endbody - 600 Amp Bushing, MainBody - 600 Amp Bushing, No Control, External Control Ready.
| Special Features: | EPDM Molded Rubber Insulation. Field Programmable with a Wide Range of Time-Circuit Characteristic (TCC) Curves and Trip Settings. Control Monitors the Circuit Condition |
| Application: | Make, Carry and Automatically Interrupt Currents |
| Standard: | ANSI C37.60, IEEE 386, ANSI C57.12.28 |
| Voltage Rating: | 27 kV |
| Amperage Rating: | 600 A |
| Material: | EPDM Rubber Insulation |
| Operating Temperature: | -40 to +65 C |
| Type: | Molded Vacuum Interrupter - Single Phase |
| Length: | 30-5/8 in , 778 mm |
| Phase: | Single Phase |
