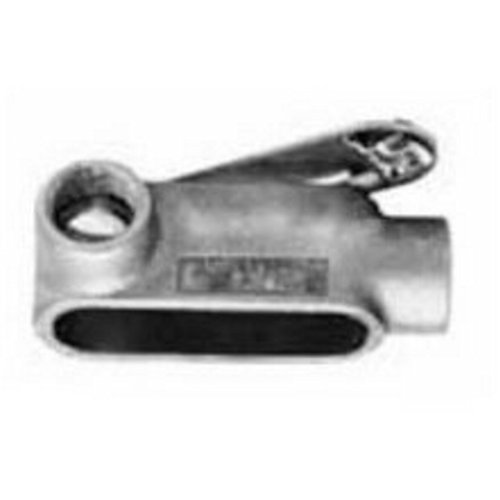

Appleton Electric IMC/Rigid Conduit Body, Access Opening Left/Right Side, Configuration L, Cover Type Zinc Electroplated Chromate Epoxy Powder Coated Grayloy Iron, Hub ...
Appleton Electric #:L27
SKU: APPLL27
UPC: 781381514576
SKU: APPLL27
UPC: 781381514576
Your Price: $21.55 / EA
Appleton Electric IMC/Rigid Conduit Body, Access Opening Left/Right Side, Configuration L, Cover Type Zinc Electroplated Chromate Epoxy Powder Coated Grayloy Iron, Hub ...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 3/4 FM7 BODY
Specification Sheet
Detailed Description
IMC/Rigid Conduit Body, Access Opening Left/Right Side, Configuration L, Cover Type Zinc Electroplated Chromate Epoxy Powder Coated Grayloy Iron, Hub Location 90 Deg, Number of Hubs 2, Hub Size 3/4 Inch, Size 5.19 Inch L x 2.44 Inch W, Installation Threaded, Material Zinc Electroplated Chromate Epoxy Powder Coated Gray Iron Body, Neoprene Gasket, Stainless Steel Screw, Form Type Form 7, Approval UL 514A/514B/E2527, CSA C22.2, Used On IMC/Rigid Conduit, Applicable Standard NEC/CEC, NEMA FB-1, Capacity 9 Cu Inch
| Type: | Conduit Body |
| Hub Size: | 3/4 |
| Form: | 7 |
| Material: | Iron |
| Application: | Ordinary locations |
| Mounting: | Ridgid and IMC |
| Standard: | UL Standard 514A, 514B UL Listed: E25627 |
| Color: | Grey |
