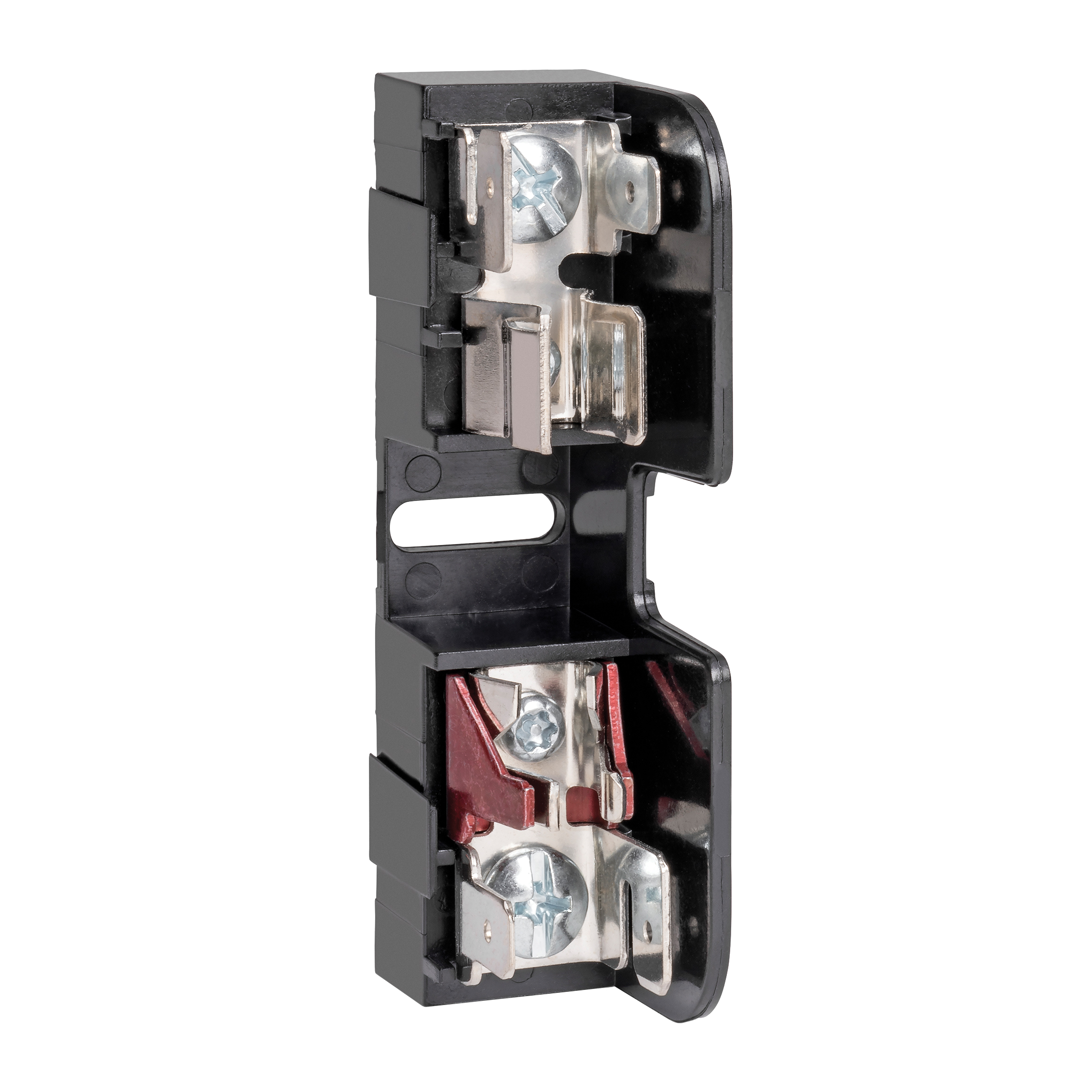

Mersen Fuse Block 600VAC 600VDC Class CC 30A Adder Pressure Plate with Reinforced Clip
Mersen #:30320R
SKU: MERS30320R
UPC: 782001663544
SKU: MERS30320R
UPC: 782001663544
Your Price: $13.44 / EA
Mersen Fuse Block 600VAC 600VDC Class CC 30A Adder Pressure Plate with Reinforced Clip
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product Fuse Block 600VAC 600VDC Class CC 30A Ad
Specification Sheet
Detailed Description
Fuse Block 600VAC 600VDC Class CC 30A Adder Pressure Plate with Reinforced Clip
| Maximum Operating Temperature: | 80 C |
| AC Voltage Rating: | 600 V |
| DC Voltage Rating: | 600 V |
| Voltage Rating: | 600 VAC |
| Amperage Rating: | 30 A |
| Phase: | 1 |
| Material: | Glass Filled Polycarbonate |
| Type: | UL/CSA Fuse Bases |
| Number Of Poles: | 1 |
| Mounting: | Screw Mount or DIN Rail |
| Class: | Class CC |
| Connection: | Pressure Plate with Reinforced Clip |
| Size: | 3.04 x 2.35 x 1.31 in |
| Standard: | UL listed, guide IZLT, File E52283 CSA certified class 6225, File 32169 |
