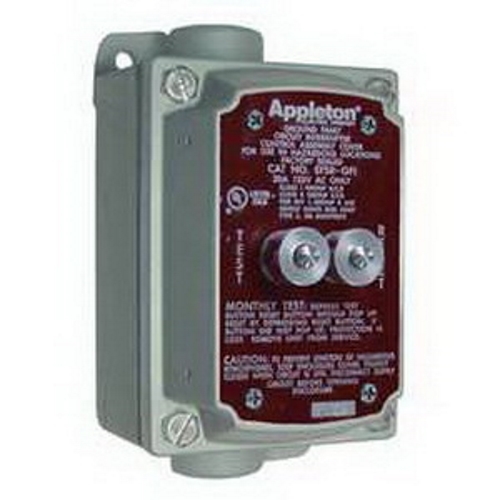

Appleton Electric EFSR-GFI Series 1-Gang Ground Fault Circuit Interrupter, Voltage Rating: 125 VAC, Amperage Rating: 20 AMP, Frequency Rating: 50 - 60 HZ, Trip Type: 5 ...
Appleton Electric #:EFSC175AGFI
SKU: APPLEFSC175AGFI
UPC: 781381671224
SKU: APPLEFSC175AGFI
UPC: 781381671224
Your Price: $1,312.81 / EA
Appleton Electric EFSR-GFI Series 1-Gang Ground Fault Circuit Interrupter, Voltage Rating: 125 VAC, Amperage Rating: 20 AMP, Frequency Rating: 50 - 60 HZ, Trip Type: 5 ...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product GFI COVER AND AL BOX
Specification Sheet
Warranty
Detailed Description
EFSR-GFI Series 1-Gang Ground Fault Circuit Interrupter, Voltage Rating: 125 VAC, Amperage Rating: 20 AMP, Frequency Rating: 50 - 60 HZ, Trip Type: 5 MILAMP Trip Setting, Enclosure: NEMA 3, 3R, 7BCD, 9EFG, Material: Cast Copperfree (Less Than 4/10 Of 1 PCT) Aluminum, Finish: Baked Gray Epoxy Clad, Mounting: Surface Mount With 3/4 IN Feed-Thru Hub, Standard: Class I, Group B, Class I, Groups C, D, Class II, Groups E, F, G, Class III, UL Listed: E81751, UL Standard: 943, 1203, For U-Line 20 AMP Receptacles
| Frequency Rating: | 50 - 60 HZ |
| Material: | Cast Copperfree (Less Than 4/10 Of 1 PCT) Aluminum |
| Trip Type: | 5 MILAMP Trip Setting |
| Amperage Rating: | 20 AMP |
| Application: | For U-Line 20 AMP Receptacles |
| Enclosure: | NEMA 3, 3R, 7BCD, 9EFG |
| Standard: | Class I, Group B; Class I, Groups C, D; Class II, Groups E, F, G; Class III; UL Listed: E81751; UL Standard: 943, 1203 |
| Voltage Rating: | 125 VAC |
| Special Features: | GFI cover and box; 5 MILAMP Trip setting; Provides required ground fault protection for portable electrically-operated devices; For ground fault protection in hazardous locations; Well suited for use in highly corrosive atmospheres and wet locations; Fact |
| Type: | EFSR-GFI Series 1-Gang Ground Fault Circuit Interrupter |
