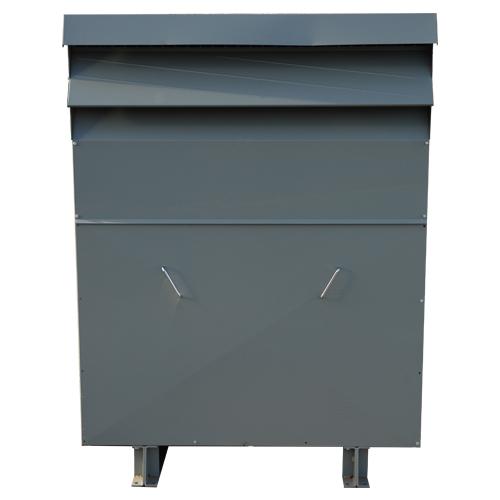

Hammond Power Solutions 1PH D16/NRC19 MV 4160D-480Y/2771250kVACU
Hammond Power Solutions #:G3A1250SPSAHC0
SKU: HAMMG3A1250SPSAHC0
UPC: 803423132934
SKU: HAMMG3A1250SPSAHC0
UPC: 803423132934
Your Price: $71,610.00 / EA
Hammond Power Solutions 1PH D16/NRC19 MV 4160D-480Y/2771250kVACU
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1PH D16/NRC19 MV 4160D-480Y/2771250kVACU
Specification Sheet
Warranty
Detailed Description
1.2kV to 5kV Class General Purpose Single Phase DOE2016 and NRCan 2019 Compliant Energy Efficient Dry-type Medium Voltage Distribution Transformer, 4160D PV, 600Y/347 SV, 1250 kVA, Aluminum Wound
| Frequency Rating: | 60 Hz |
| Cooling: | Convection cooled |
| Number Of Phases: | 3 |
| Number Of Taps: | ST-20 compliant |
| Standard: | CSA, UL |
| Temperature Rating: | Typical 30 Average/ 40 Maximum Deg C |
| Mounting: | Floor mount |
| Special Features: | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Application: | Industrial and Commercial Applications including Mining, Water Waste Water, Utility and Data Centers |
| Primary Voltage: | 4160D V |
| Secondary Voltage: | 600Y/347 V |
| Enclosure: | DH10-N3R - Indoor or Outdoor |
| Height: | 78 in |
| Length: | 54.5 in |
| KVA Rating: | 1250 kVA |
