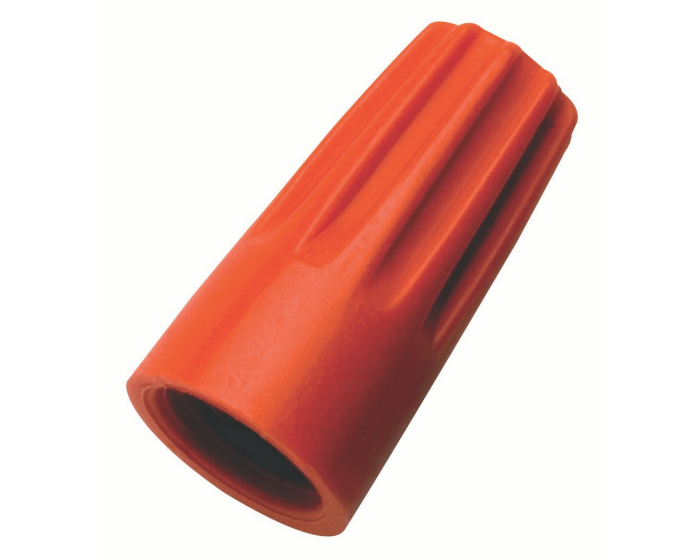

Ideal Industries WIRENUT 73B ORANGE, 300 JAR
Ideal Industries #:30-073J
SKU: IDEA30-073J
UPC: 783250216789
SKU: IDEA30-073J
UPC: 783250216789
Your Price: $0.12 / EA
Ideal Industries WIRENUT 73B ORANGE, 300 JAR
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product Wire-Nut® Wire Conn, Model 73B® Orange, 300/Jar
Detailed Description
IDEAL, Wire Connector, Wire-Nut, Twist-On, Number Of Conductors: 1 to 5, Conductor Range: 22 - 14 AWG, Min 1-18 w/2-20 MAX 2-14, Color: Orange, Material: Flame-retardant polypropelene, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F), Model Number: 73B, Flammability Rating: UL 94V-2
| Number Of Conductors: | 1 to 5 |
| Conductor Range: | 22 - 14 AWG, Min 1-18 w/2-20 MAX 2-14 |
| Color: | Orange |
| Voltage Rating: | 600 |
| Environmental Conditions: | Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F) |
| Material: | Flame-retardant Polypropelene |
| Application: | Insulating or Joining 2 or more conductors |
| Type: | Twist-On |
| Special Features: | Features: Fixed, Square-Wire Spring Creates Its Own Threads Maintains A Secure Positive Grip That Will Not Relax Over Time; No Pre-Twisting Required Positive Grip Design Provides Fast, Easy Installation; Deep Skirt Helps Protect Against Flash-Over; Reusab |
| Standard: | CSA Certified to C22.2 #188, UL Listed to 486C, complies with Federal Specification W-S-610E |
