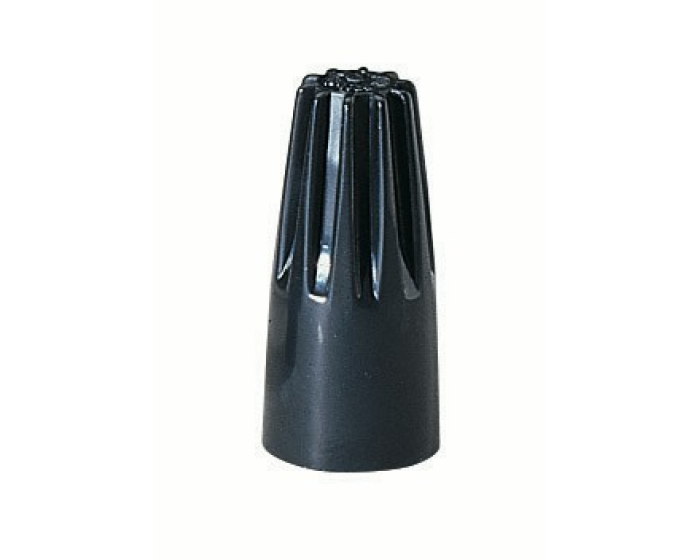

Ideal Industries WIRENUT 59B BLK 100PC BX
Ideal Industries #:30-059
SKU: IDEA30-059
UPC: 783250300594
SKU: IDEA30-059
UPC: 783250300594
Your Price: $0.23 / EA
Ideal Industries WIRENUT 59B BLK 100PC BX
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product Hi-Temp Wire-Nut® Wire Conn, 59B™ Black, 100/Box
Detailed Description
IDEAL, Wire Connector, Wire-Nut, High Temperature Twist-On, Number Of Conductors: 1 to 6, Conductor Range: 22 - 12 AWG, Min 2 - 20, MAX 3-14, Color: Black, Material: THERMOPLASTIC POLYESTER, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-0 Flame-Retardant Shell Rated At 150 DEG C (302 F), Model Number: 59B, Width: 31/64 IN, Height: 1-1/16 IN
| Number Of Conductors: | 1 to 6 |
| Conductor Range: | 22 - 12 AWG, Min 2 - 20, MAX 3-14 |
| Color: | Black |
| Voltage Rating: | 600 |
| Special Features: | Features: Fixed, Square-Wire Spring Creates Its Own Threads Maintains A Secure Positive Grip That Will Not Relax Over Time; No Pre-Twisting Required Positive Grip Design Provides Fast, Easy Installation; Deep Skirt Helps Protect Against Flash-Over; Reusab |
| Application: | Insulating or Joining 2 or more conductors in conditions where extreme heat buildup occurs such as high wattage fixtures and signs. |
| Environmental Conditions: | Tough, UL 94V-0 Flame-Retardant Shell Rated At 150 DEG C (302 F) |
| Standard: | CSA Certified to C22.2 #188, UL Listed to 486C |
| Type: | High Temperature Twist-On |
| Material: | THERMOPLASTIC POLYESTER |
