Thomas & Betts Windowop W/insulated Cap
Thomas & Betts #:655ETP-L0330-DRG
SKU: ABBI655ETP-L0330-DRG
UPC: 783786570386
SKU: ABBI655ETP-L0330-DRG
UPC: 783786570386
Your Price: $1,004.98 / EA
Thomas & Betts Windowop W/insulated Cap
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description

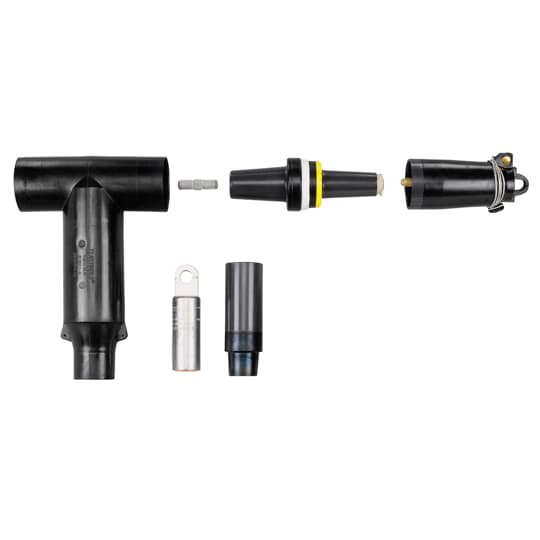

15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter and 0370 style compression lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter 1.180 inch to 1.465 inch |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Insulation: | EPDM Rubber |
| Voltage Rating: | 15 kV |
| Amperage Rating: | 600 A |
| Type: | Window-Op Connector |
| Conductor Range: | 500 STR/COMPR kcmil , 600 SOL/COMPT kcmil |
| Application: | 600 Amps, 15kV |
| Special Features: | Includes Insulated Cap |
