Thomas & Betts Windowop Kit, 15kv
Thomas & Betts #:655ETP-L0330-DRG-S
SKU: ABBI655ETP-L0330-DRG-S
UPC: 783786679324
SKU: ABBI655ETP-L0330-DRG-S
UPC: 783786679324
Your Price: $1,058.44 / EA
Thomas & Betts Windowop Kit, 15kv
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description

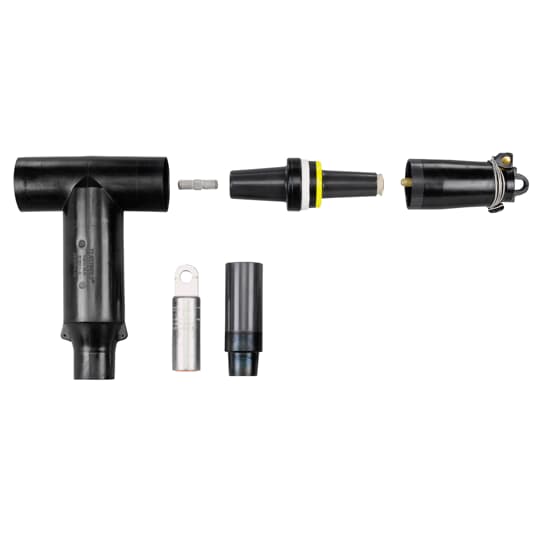

15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter and 0370 style compression lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. 200ECS Cold-Shrinkable Jacket Seal Included.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter 1.180 inch to 1.465 inch |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Insulation: | EPDM Rubber |
| Voltage Rating: | 15 kV |
| Amperage Rating: | 600 A |
| Type: | Window-Op Connector |
| Special Features: | Includes Insulated Cap and Sealing Kit |
| Conductor Range: | 500 STR/COMPR kcmil , 600 SOL/COMPT kcmil |
| Application: | 600 Amps, 15kV |
