Thomas & Betts Window-op Kit, 600a Db, 35kv
Thomas & Betts #:755ETP-J0230-DRG
SKU: ABBI755ETP-J0230-DRG
UPC: 783786476701
SKU: ABBI755ETP-J0230-DRG
UPC: 783786476701
Your Price: $2,051.08 / EA
Thomas & Betts Window-op Kit, 600a Db, 35kv
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description

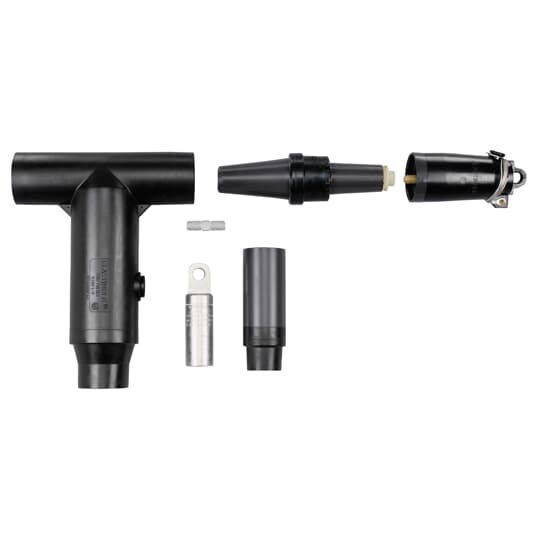

600 Amp, Test and Ground Connector Kit, 35KV, DeadBreak, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter 0.980-1.180 inches |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Insulation: | EPDM Rubber |
| Voltage Rating: | 35 kV |
| Amperage Rating: | 600 A |
| Conductor Range: | #1 STR/COMPR AWG , 1/0 SOL/COMPT AWG |
| Type: | Window-Op Connector |
| Application: | 600 Amps, 35kV |
| Special Features: | Includes Insulated Cap |
