Thomas & Betts Window-op Elbow,600a Db,25kv W/shie
Thomas & Betts #:K656ETP-H5260-S-TL
SKU: ABBIK656ETP-H5260-S-TL
UPC: 783786796427
SKU: ABBIK656ETP-H5260-S-TL
UPC: 783786796427
Your Price: $1,503.84 / EA
Thomas & Betts Window-op Elbow,600a Db,25kv W/shie
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description

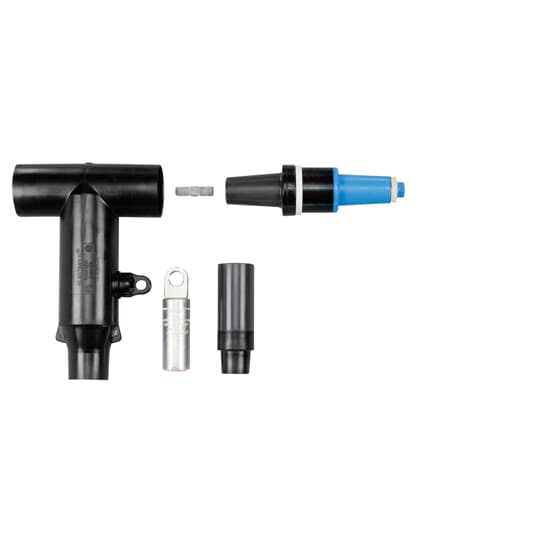

600 Amp, 25kV, Deadbreak Elbow, Window Op Connector Kit with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 3/0 /Compacted Solid 4/0 /mmSquared Compact 95. Cold-Shrinkable Jacket Seal Included. With Sheild Adapter.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter 0.850 inch to 1.050 inch |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Voltage Rating: | 25 kV |
| Material: | Housing - EPDM Rubber |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Amperage Rating: | 600 A |
| Conductor Range: | 3/0 STR/COMPR AWG , 4/0 SOL/COMPT AWG |
| Type: | Window-Op Connector |
| Application: | 600 Amps, 25kV |
| Special Features: | Capacitive Test Point, Cold-Shrinkable Jacket Seal and Shield Adapter |
