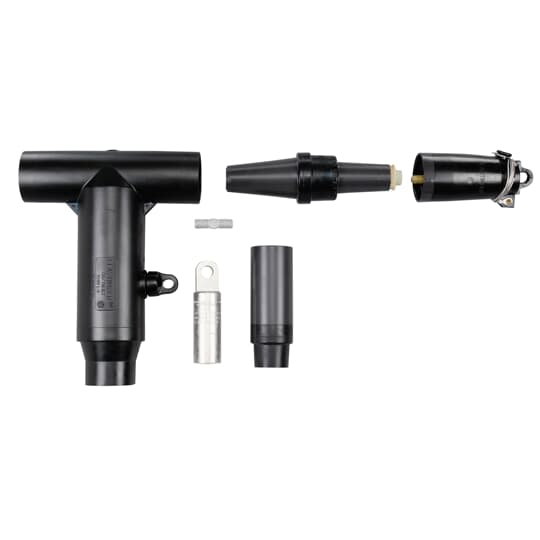

Thomas & Betts Window-op Elbow Tap Plug 600 Amp
Thomas & Betts #:756ETP-J0230-DRG
SKU: ABBI756ETP-J0230-DRG
UPC: 783786794515
SKU: ABBI756ETP-J0230-DRG
UPC: 783786794515
Your Price: $1,549.72 / EA
Thomas & Betts Window-op Elbow Tap Plug 600 Amp
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description
600 Amp, 35kV, Deadbreak, Elbow Tap Plug, Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG or kcmil, Compressed Stranded #1/ Compacted Solid 1/0 /mmSquared Compact 50. With Insulated Cap.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter 0.980 inch to 1.180 inch |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Insulation: | EPDM Rubber |
| Voltage Rating: | 35 kV |
| Amperage Rating: | 600 A |
| Conductor Range: | #1 STR/COMPR AWG , 1/0 SOL/COMPT AWG |
| Type: | Window-Op Connector |
| Application: | 600 Amps, 35kV |
| Special Features: | Includes Insulated Cap |
