Thomas & Betts Window-op Elbow Kit,900a Db,25kv
Thomas & Betts #:K655ETP-N0380-DRG-S
SKU: ABBIK655ETP-N0380-DRG-S
UPC: 783786558384
SKU: ABBIK655ETP-N0380-DRG-S
UPC: 783786558384
Your Price: $1,210.03 / EA
Thomas & Betts Window-op Elbow Kit,900a Db,25kv
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description

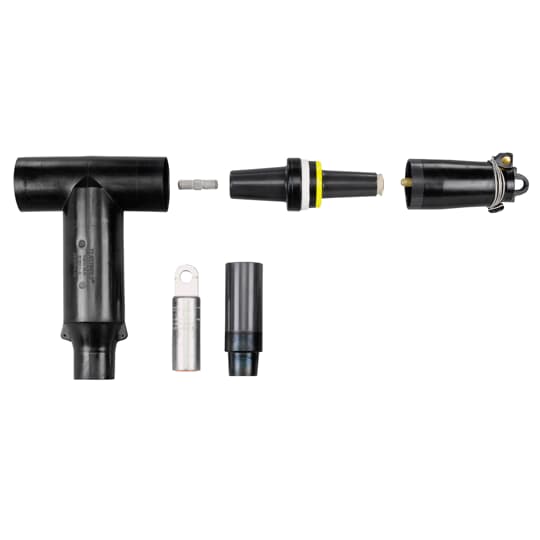

25kV, 600 Amp Deadbreak, Test and Ground Connector Kit. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900. With Insulated Cap. Cold-Shrinkable Jacket Seal Included.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter 1.515 inch to 1.780 inch |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Voltage Rating: | 25 kV |
| Material: | Housing - EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Insulation: | EPDM Rubber |
| Amperage Rating: | 600 A |
| Type: | Window-Op Connector |
| Application: | 600 Amps, 25kV |
| Special Features: | Includes Insulated Cap and Sealing Kit |
| Conductor Range: | 700 to 750 STR/COMPR kcmil , 900 SOL/COMPT kcmil |
