Thomas & Betts Window Op, Elbow Kit,600a,db,25kv
Thomas & Betts #:K655ETP-K0300-DRG
SKU: ABBIK655ETP-K0300-DRG
UPC: 783786953271
SKU: ABBIK655ETP-K0300-DRG
UPC: 783786953271
Your Price: $1,145.13 / EA
Thomas & Betts Window Op, Elbow Kit,600a,db,25kv
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description

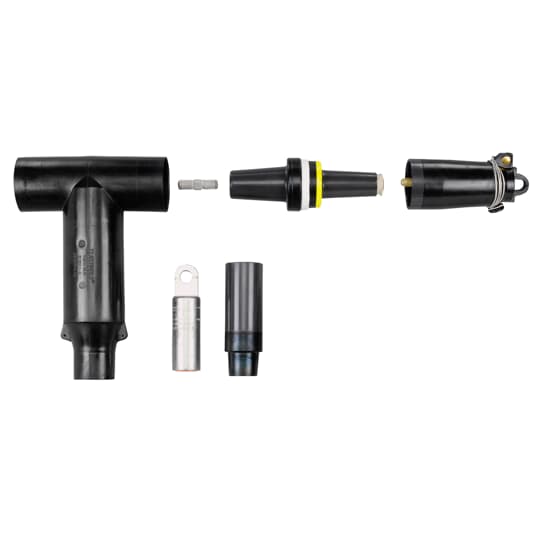

25kV, 600 Amp Deadbreak, Test and Ground Connector Kit. Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185. With Insulated Cap.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter 1.090 inch to 1.310 inch |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Voltage Rating: | 25 kV |
| Material: | Housing - EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Insulation: | EPDM Rubber |
| Amperage Rating: | 600 A |
| Type: | Window-Op Connector |
| Application: | 600 Amps, 25kV |
| Special Features: | Includes Insulated Cap |
| Conductor Range: | 350 STR/COMPR kcmil , 400 SOL/COMPT kcmil |
