Thomas & Betts Window-op Elbow Kit,600a Db, 15kv
Thomas & Betts #:656ETP-L0360-DRG
SKU: ABBI656ETP-L0360-DRG
UPC: 783786042852
SKU: ABBI656ETP-L0360-DRG
UPC: 783786042852
Your Price: $1,052.27 / EA
Thomas & Betts Window-op Elbow Kit,600a Db, 15kv
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description

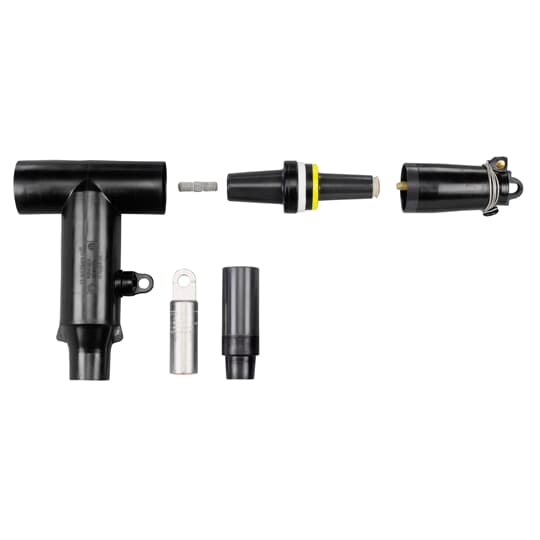

600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Test and Ground Connector Kit, Insulated Cap. Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter 1.180 inch to 1.465 inch |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Voltage Rating: | 15 kV |
| Amperage Rating: | 600 A |
| Conductor Range: | 650 kcmil , 750 to 800 kcmil |
| Type: | Window-Op Connector |
| Application: | 600 Amps, 15kV |
| Special Features: | Capacitive Test Point, Insulated Cap |
