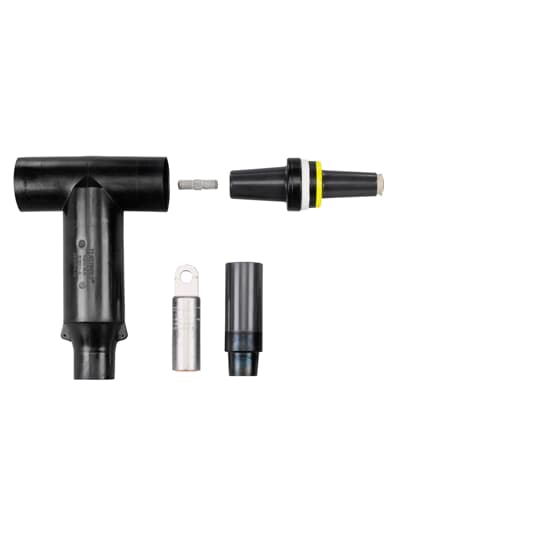

Thomas & Betts Window-op Elbow Kit, 600a Dp, 25kv
Thomas & Betts #:K655ETP-G-0230S
SKU: ABBIK655ETP-G-0230S
UPC: 783786580927
SKU: ABBIK655ETP-G-0230S
UPC: 783786580927
Your Price: $1,029.35 / EA
Thomas & Betts Window-op Elbow Kit, 600a Dp, 25kv
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
25kV, 600 Amp Deadbreak, Test and Ground Connector Kit. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded #1/ Compacted Solid 1/0 /mmSquared Compact 50. Cold-Shrinkable Jacket Seal Included.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter 0.760 inch to 0.950 inch |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Voltage Rating: | 25 kV |
| Material: | Housing - EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Insulation: | EPDM Rubber |
| Amperage Rating: | 600 A |
| Conductor Range: | #1 STR/COMPR AWG , 1/0 SOL/COMPT AWG |
| Type: | Window-Op Connector |
| Application: | 600 Amps, 25kV |
| Special Features: | Includes Sealing Kit |
