Thomas & Betts Window Op Elbow Connector
Thomas & Betts #:K656ETP-N0410
SKU: ABBIK656ETP-N0410
UPC: 783786077502
SKU: ABBIK656ETP-N0410
UPC: 783786077502
Your Price: $1,038.25 / EA
Thomas & Betts Window Op Elbow Connector
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description

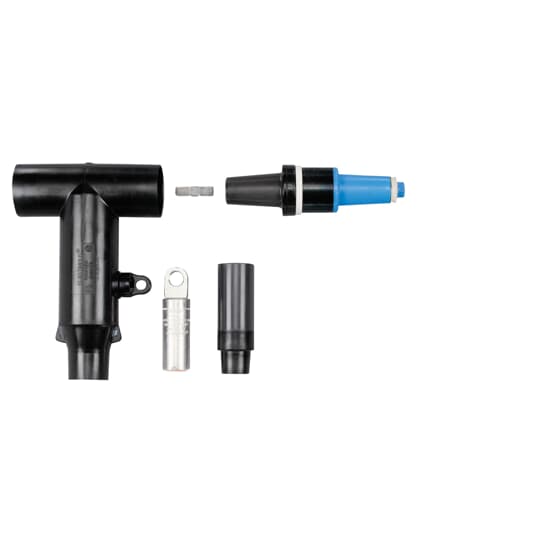

600 Amp, 25kV, Deadbreak Elbow, Window Op Connector Kit with Test Point. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter 1.515 inch to 1.780 inch |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Voltage Rating: | 25 kV |
| Material: | Housing - EPDM Rubber |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Amperage Rating: | 600 A |
| Conductor Range: | 1000 kcmil |
| Type: | Window-Op Connector |
| Application: | 600 Amps, 25kV |
| Special Features: | Capacitive Test Point |
