Thomas & Betts Window Op, 600a Db,25kv
Thomas & Betts #:K656ETP-N0380
SKU: ABBIK656ETP-N0380
UPC: 783786043057
SKU: ABBIK656ETP-N0380
UPC: 783786043057
Your Price: $1,038.35 / EA
Thomas & Betts Window Op, 600a Db,25kv
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description

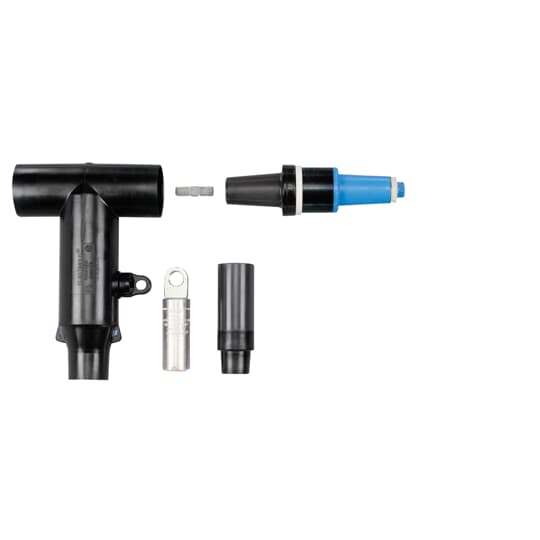

600 Amp, 25kV, Deadbreak Elbow, Window Op Connector Kit with Test Point. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter 1.515 inch to 1.780 inch |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Voltage Rating: | 25 kV |
| Material: | Housing - EPDM Rubber |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Amperage Rating: | 600 A |
| Conductor Range: | 700 to 750 kcmil , 900 kcmil |
| Type: | Window-Op Connector |
| Application: | 600 Amps, 25kV |
| Special Features: | Capacitive Test Point |
