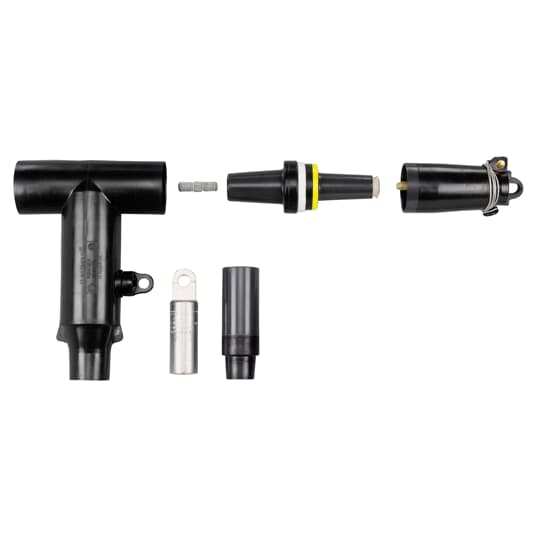

Thomas & Betts Window-op, 600a Db, Elbow Kit, 15kv
Thomas & Betts #:656ETP-L0320-DRG-S
SKU: ABBI656ETP-L0320-DRG-S
UPC: 783786784820
SKU: ABBI656ETP-L0320-DRG-S
UPC: 783786784820
Your Price: $1,105.85 / EA
Thomas & Betts Window-op, 600a Db, Elbow Kit, 15kv
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Test and Ground Connector Kit, Insulated Cap. 200ECS Cold-Shrinkable Jacket Seal Included. Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter 1.180 inch to 1.465 inch |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Voltage Rating: | 15 kV |
| Amperage Rating: | 600 A |
| Conductor Range: | 450 kcmil , 500 to 550 kcmil |
| Type: | Window-Op Connector |
| Application: | 600 Amps, 15kV |
| Special Features: | Capacitive Test Point, Insulated Cap and Sealing Kit |
