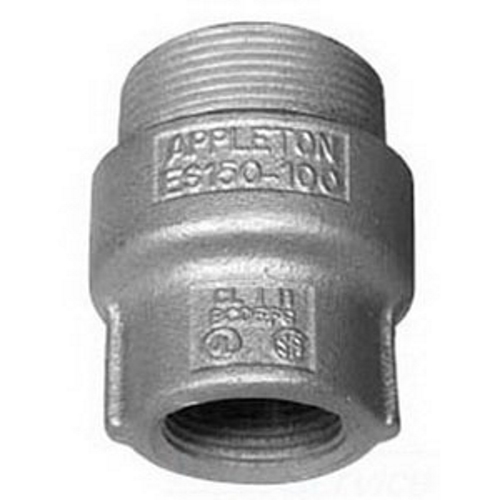

Appleton Electric UNILETS Sealing Hub, Size: 1 X 1-1/2 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection...
Appleton Electric #:ES150100
SKU: APPLES150100
UPC: 781381703222
SKU: APPLES150100
UPC: 781381703222
Your Price: $28.66 / EA
Appleton Electric UNILETS Sealing Hub, Size: 1 X 1-1/2 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1 SEALING HUB - MALL IRON
Specification Sheet
Warranty
Detailed Description
UNILETS Sealing Hub, Size: 1 X 1-1/2 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered MNPT X Tapered FNPT, Cubic Capacity: 3.1 CU-IN, Length: 3.13 IN, Height: 2-1/
| Material: | Malleable Iron |
| Finish: | Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) |
| Application: | For Use With Threaded Rigid Metal Conduit And IMC |
| Standard: | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups A, B, C, d; Class II, Groups E, F, G; And Class III |
| Connection: | Tapered MNPT X Tapered FNPT |
| Special Features: | Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Allows up to 25 PCT conduit fill in compliance with the Natio |
| Type: | Sealing Hub |
| Cubic Capacity: | 3.1 CU-IN |
| Size: | 1 X 1-1/2 IN |
