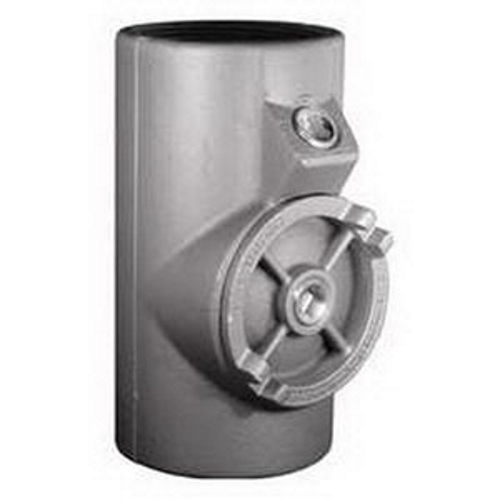

Appleton Electric UNILETS EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting, Size: 4 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electro...
Appleton Electric #:EYF-400
SKU: APPLEYF-400
UPC: 781381135320
SKU: APPLEYF-400
UPC: 781381135320
Your Price: $697.68 / EA
Appleton Electric UNILETS EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting, Size: 4 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electro...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 4 EXP PROOF SEAL. UNILET
Specification Sheet
Warranty
Detailed Description
UNILETS EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting, Size: 4 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Female Threaded, Turning Radius: 3.69 IN, Length: 9.38 IN, Width: 5.13 IN, Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups B, C, D, Class II, Groups E, F, G, and Class III, For Use With Threaded Rigid Metal Conduit and IMC
| Size: | 4 in |
| Material: | Malleable Iron |
| Connection: | Female Threaded |
| Finish: | Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) |
| Application: | For Use With Threaded Rigid Metal Conduit And IMC |
| Special Features: | For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I |
| Type: | EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting |
| Standard: | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups B, C, D; Class II, Groups E, F, G; And Class III |
