Thomas & Betts Ty27mx For Railway Sp
Thomas & Betts #:TY527MXR-RW
SKU: ABBITY527MXR-RW
UPC: 786209884282
SKU: ABBITY527MXR-RW
UPC: 786209884282
Your Price: $1.28 / EA
Thomas & Betts Ty27mx For Railway Sp
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description

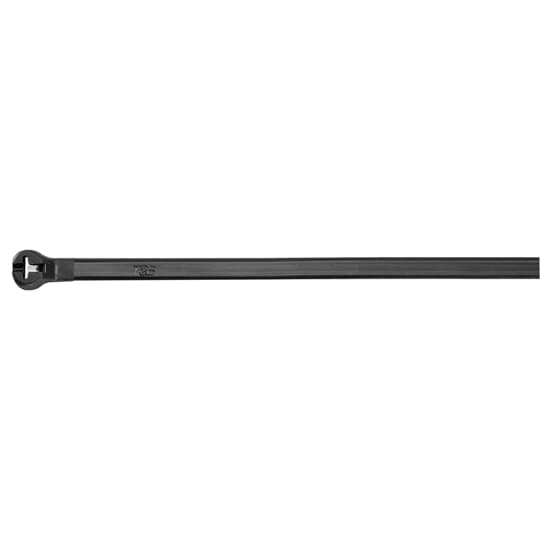

High Performance Cable Tie for Railway Applications, Black Color Nylon 6.6, Length of 343mm (13.5 Inches) for Bundle Diameter up to 102mm (4.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 105 Degrees Celsius (221 F)
| Color: | Black |
| Application: | Support and framing applications |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Standard: | UL E49405 |
| Material: | Nylon/Polyamide 6.6 |
| Thickness: | 0.06 in , 1.5 mm |
| Tensile Strength: | 120 pounds , 534 newtons |
| Lock Mechanism: | Stainless Steel Barb |
| Type: | High Performance |
| Length: | 13.5 in , 343 mm |
| Width: | 0.27 in , 6.9 mm |
| Bundle Diameter: | Max 4.02 in , Max 102 mm |
| Special Features: | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time |
