Your Price: $14.56 / EA

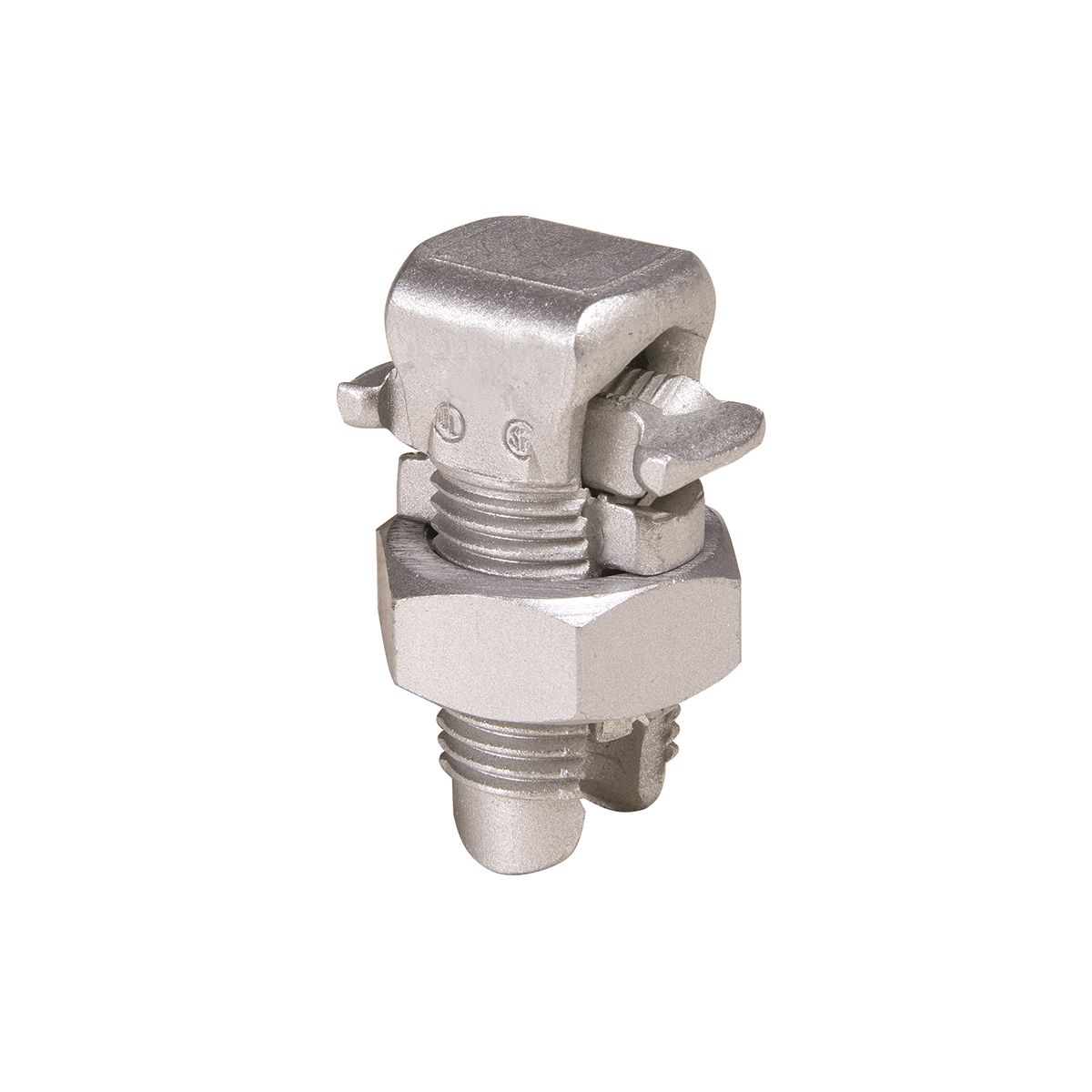

Burndy TRITAP SERVIT 4STR-10SOL
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product TRITAP SERVIT 4STR-10SOL
Specification Sheet
Detailed Description
Aluminum Split Bolt, (Run,Tap):: Al-Al: 4 AWG (Str), 4 AWG (Str) , Al-Cu: 8 AWG (Sol), 10 AWG (Sol) , Cu-Cu: 4 AWG (Str), 10 AWG (Sol), Tin Plated.
| Product Type: | RUN/TAP |
| Product Name: | KSA4, Aluminum Split Bolt Connector, Tin Plated |
| Installation Torque Recommended in-lb: | 165 LBS/in |
| Plated: | Y |
| Dimension - B Length inch: | 1.06 in |
| Standard: | UL 486A-486B |
| Special Features: | Features: No Scratch Brushing Required, No Oxide Inhibitor Required, Orients The Conductor, Provides Maximum Pressure And Assures A Secure Connection Of Run And Tap Conductors, Facilitates Piercing The Aluminum Conductor Surface Oxides, UL 486B Listed, 90 |
| Type: | KSA |
| Application: | For All Combinations Of Aluminum To Aluminum, Aluminum To Copper And Copper To Copper, Aluminum Alloy Tin Plated |
| Material: | Aluminum |
| Temperature Rating: | 194 |
