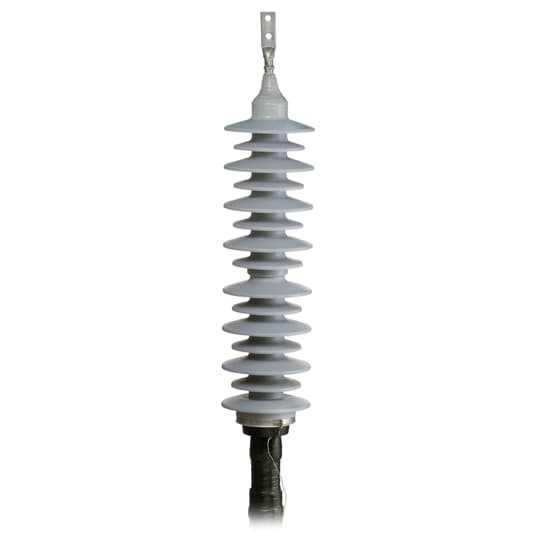

Thomas & Betts Transmission Terminator,69kv
Thomas & Betts #:69TCT23N242PABN
SKU: ABBI69TCT23N242PABN
UPC: 783786522323
SKU: ABBI69TCT23N242PABN
UPC: 783786522323
Your Price: $6,934.17 / EA
Thomas & Betts Transmission Terminator,69kv
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 3, Connection Type - None, Connector Type - Copper, Conductor Size Code 42P, Metallic Screen Kit - Flat Braid, Armour Kit - Heat Shrink, No Bracket Required
| Earthing: | Products Includes Their Own Grounding System |
| Number Of Terminals: | (1) Single Phase |
| Cable Type: | Copper Tape Shielded Wire |
| Type: | Cable Termination |
| Special Features: | Molded EPDM Elastomer Housing is Durable under Severe Envoronmental Conditions. Lightweight and easy to Handle |
| Application: | Cable Terminations, 69kV |
| Standard: | IEEE 48 and IEC-840 |
| Voltage Rating: | 69 kV |
| Color: | Light Gray |
| Mounting: | No Bracket Required |
| Conductor Size: | 1.153 to 1.220 in |
