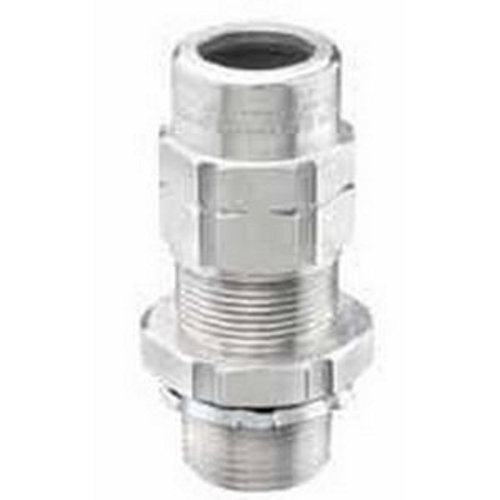

Appleton Electric TMC2 Series Cable Gland Connector, Size: 4 IN, Material: Copperfree Aluminum, Enclosure: IP66, Nema Rating: NEMA 4X, Temperature Rating: -60 To 110 DE...
Appleton Electric #:TMC2-400425A
SKU: APPLTMC2-400425A
UPC: 781381300926
SKU: APPLTMC2-400425A
UPC: 781381300926
Your Price: $605.28 / EA
Appleton Electric TMC2 Series Cable Gland Connector, Size: 4 IN, Material: Copperfree Aluminum, Enclosure: IP66, Nema Rating: NEMA 4X, Temperature Rating: -60 To 110 DE...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product TMC2 CABLE GLAND ALUM 400NPT
Specification Sheet
Warranty
Detailed Description
TMC2 Series Cable Gland Connector, Size: 4 IN, Material: Copperfree Aluminum, Enclosure: IP66, Nema Rating: NEMA 4X, Temperature Rating: -60 To 110 DEG C, Connection: NPT, Dimensions: 5.23 IN Across Flat X 5.65 IN Across Corner X 5.6
| Size: | 4 IN |
| Enclosure: | IP66 |
| Application: | For Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor Cable |
| Connection: | NPT |
| Material: | Copperfree Aluminum |
| NEMA Rating: | NEMA 4X |
| Special Features: | TMC2 connectors provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor; Simplified two piece design; Integral o-ring face seal providing - 4X and IP66; Independent |
| Standard: | Class I, Division 2, Groups A, B, C, D; Class I, Zones 1 And 2, AExe II AEx tA IIC; Class I, Zones 1 And 2, Exe II Ex tA IIC; Class II, Divisions 1 And 2, Groups E, F, G; Class III, Divisions 1 And 2; UL 514B, 2225, CSA C22.2 No. 174, 249506 |
| Type: | TMC2 Series Cable Gland Connector |
| Temperature Rating: | -60 To 110 DEG C |
