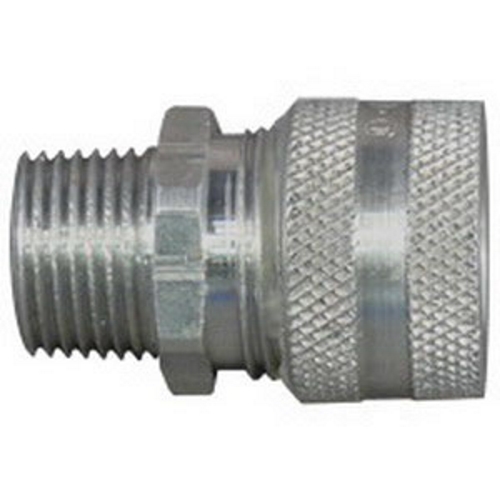

Appleton Electric Straight Liquidtight Strain Relief Connector, Size: 4 IN, Conductor Range: 3-3/4 - 4 IN, Material: Aluminum, Nema Rating: NEMA 3R, Connection: Threade...
Appleton Electric #:CG-375400
SKU: APPLCG-375400
UPC: 781381448369
SKU: APPLCG-375400
UPC: 781381448369
Your Price: $289.26 / EA
Appleton Electric Straight Liquidtight Strain Relief Connector, Size: 4 IN, Conductor Range: 3-3/4 - 4 IN, Material: Aluminum, Nema Rating: NEMA 3R, Connection: Threade...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 4 IN ALUM L-T CRD AND CBL CONN
Specification Sheet
Warranty
Detailed Description
Straight Liquidtight Strain Relief Connector, Size: 4 IN, Conductor Range: 3-3/4 - 4 IN, Material: Aluminum, Nema Rating: NEMA 3R, Connection: Threaded Hub, Dimensions: 5.5 IN Height, Standard: Class I, Division 2, Class II, Division 1
| Size: | 4 IN |
| Material: | Aluminum |
| Application: | For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable |
| Connection: | Threaded Hub |
| Special Features: | For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which |
| Standard: | Class I, Division 2, Class II, Division 1 And 2 Class III, CSA C22.2 No. 18.3, 065178 |
| Type: | Straight Liquidtight Strain Relief Connector |
| NEMA Rating: | NEMA 3R |
| Conductor Range: | 3-3/4 - 4 |
