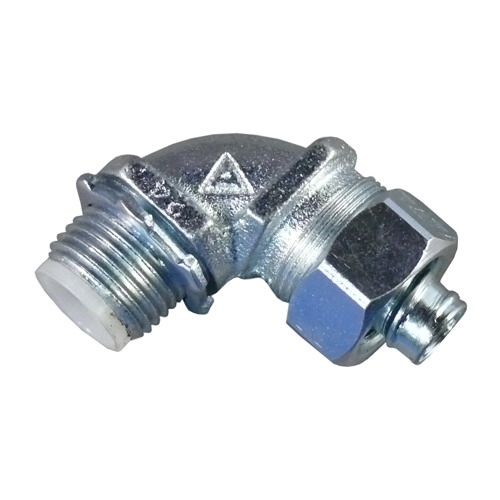

Appleton Electric STB Series 90 DEG Liquidtight Connector With Insulated Throat, Size: 1 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chrom...
Appleton Electric #:STB-90100
SKU: APPLSTB-90100
UPC: 781381682053
SKU: APPLSTB-90100
UPC: 781381682053
Your Price: $22.81 / EA
Appleton Electric STB Series 90 DEG Liquidtight Connector With Insulated Throat, Size: 1 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chrom...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1 IN 90D INSUL LFMC CONN
Specification Sheet
Warranty
Detailed Description
STB Series 90 DEG Liquidtight Connector With Insulated Throat, Size: 1 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Thread Length: 3/4 IN, Standard: Class I, D
| Size: | 1 IN |
| Finish: | Chromate, Epoxy Powder Coat/Zinc Electroplated |
| Material: | Malleable Iron |
| Standard: | Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1 |
| Application: | For Liquidtight Flexible Metal Conduit |
| Special Features: | Seals out oil, water, dust, dirt and fumes; High corrosion resistance; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, perman |
| Connection: | Threaded X Compression |
| Type: | STB Series 90 DEG Liquidtight Connector With Insulated Throat |
