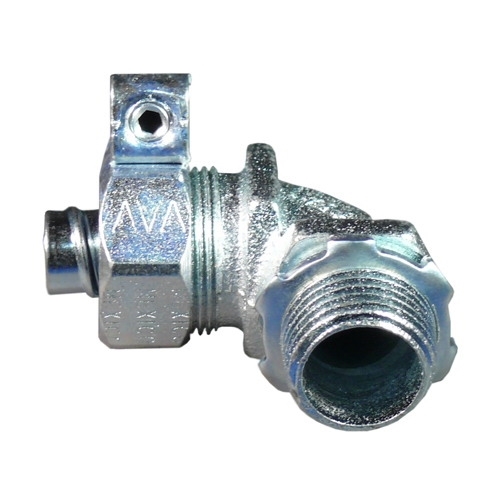

Appleton Electric ST Series 90 DEG Liquidtight Connector, Size: 3/4 IN, Connection: Threaded X Compression, Conductor Range: 14 - 4 AWG, Material: Malleable Iron, Finis...
Appleton Electric #:ST-9075L
SKU: APPLST-9075L
UPC: 781381403283
SKU: APPLST-9075L
UPC: 781381403283
Your Price: $13.13 / EA
Appleton Electric ST Series 90 DEG Liquidtight Connector, Size: 3/4 IN, Connection: Threaded X Compression, Conductor Range: 14 - 4 AWG, Material: Malleable Iron, Finis...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 3/4 IN 90DEG LFMC CONN W/LUG
Specification Sheet
Warranty
Detailed Description
ST Series 90 DEG Liquidtight Connector, Size: 3/4 IN, Connection: Threaded X Compression, Conductor Range: 14 - 4 AWG, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Thread Length: 0.63 IN, Standard: Cl
| Size: | 3/4 in |
| Finish: | Chromate, Epoxy Powder Coat/Zinc Electroplated |
| Material: | Malleable Iron |
| Application: | For Liquidtight Flexible Metal Conduit |
| Connection: | Threaded X Compression |
| Special Features: | Includes plain throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-m |
| Standard: | Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1 |
| Type: | ST Series 90 DEG Liquidtight Connector |
| Conductor Range: | 14 - 4 |
