Pass & Seymour SLIDE SP/3W PRESET 2000W WH
Pass & Seymour #:CD2003PW
SKU: LEGRCD2003PW
UPC: 785007618501
SKU: LEGRCD2003PW
UPC: 785007618501
Your Price: $336.03
Pass & Seymour SLIDE SP/3W PRESET 2000W WH
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product SLIDE SP/3W PRESET 2000W WH
Specification Sheet
Warranty
Detailed Description

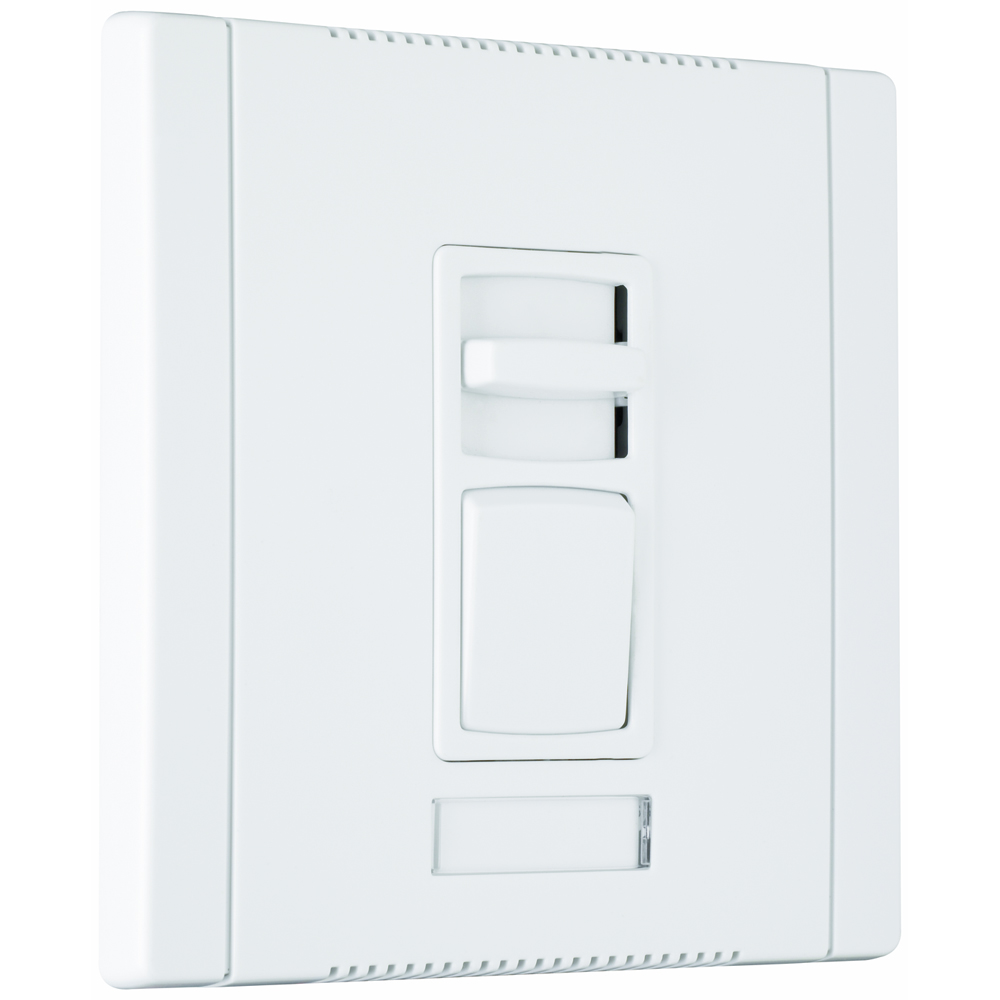

Slide Dimmer, Single Pole/3Way PRESET 2000W, White
| Mounting: | Wall |
| Actuator: | Slide |
| Material: | Thermoplastic |
| Operating Temperature: | Ambient: Between 0 to 40C Deg |
| Size: | 4.65 L x 1.44 W x 4.87 H In |
| Application: | Commercial |
| Voltage Rating: | 120 |
| Frequency Rating, Maximum: | 60.000000000000000 Hz |
| Environmental Conditions: | Non-Condensing Humidity: Less than 95 |
| Load: | Up to rating of device (including de-rating) |
| Operating Cycles: | 100 cycles @ 150% of rated load plus 10K cycles @ rated load |
| Standard: | cULus, California Title 24 Compliant |
| Number Of Poles: | Single Pole / 3-Way |
| Special Features: | Field configurable wall plate system. Labeling system. Adjustable top end output voltage. Shipped with protective film. Rugged construction. Superior ratings with a minimum of de-rating when ganged. Simple to plan the rough-in. Available in single pole sl |
| Type: | Titan Series Incandescent Dimmer, Preset, Wide |
| Wattage: | 2000 |
