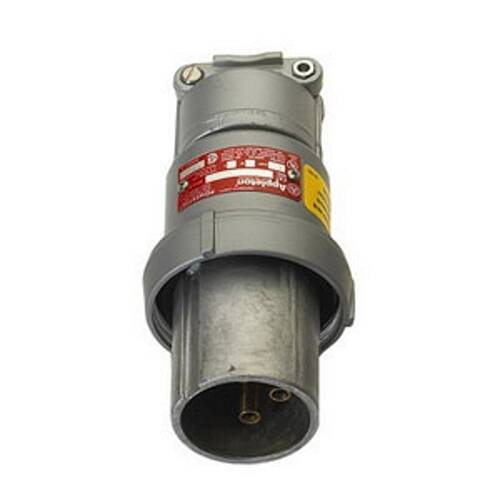

Appleton Electric ACP3044BCRS Powertite Grounding Style 1 Metallic Clamping Ring Plug, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra F...
$338.07
Appleton Electric #: ACP3044BCRS
SKU: APPLACP3044BCRS
UPC: 781381710473
SKU: APPLACP3044BCRS
UPC: 781381710473
| Connection: | Pressure Wire Terminal |
| Number of Poles: | 4 |
| Phase: | 3 |
| Special Features: | For reverse service (generator applications); Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal |
| Standard: | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| Type: | Grounding Style 1 Metallic Clamping Ring Plug |
| Voltage Rating: | 600 VAC At 50 - 400 HZ, 250 VDC |
| Wire Size: | 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex) |
| Environmental Conditions: | Temperature Rating: -40 To 107 DEG C |
| Amperage Rating: | 30 AMP |
| Material: | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| NEMA Rating: | NEMA 3, 3R, 4, 4X |
| Application: | For ADR3044 Receptacle And ARC3044BC Connector Body |
| Number of Wires: | 4 |
