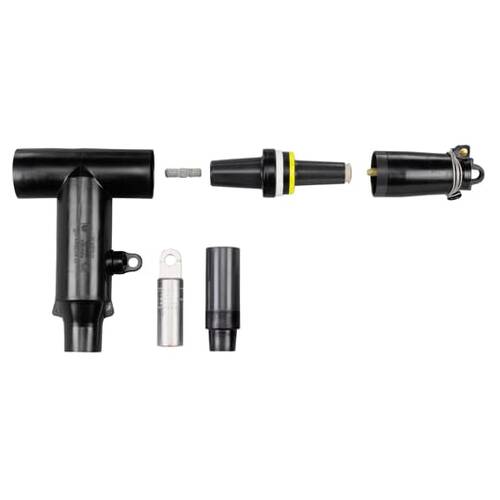

Thomas & Betts 656ETP-L0320-DRG-S Window-op, 600a Db, Elbow Kit, 15kv
$1,105.85
Thomas & Betts #: 656ETP-L0320-DRG-S
SKU: ABBI656ETP-L0320-DRG-S
UPC: 783786784820
SKU: ABBI656ETP-L0320-DRG-S
UPC: 783786784820
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter 1.180 inch to 1.465 inch |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Voltage Rating: | 15 kV |
| Amperage Rating: | 600 A |
| Conductor Range: | 450 kcmil , 500 to 550 kcmil |
| Type: | Window-Op Connector |
| Application: | 600 Amps, 15kV |
| Special Features: | Capacitive Test Point, Insulated Cap and Sealing Kit |
