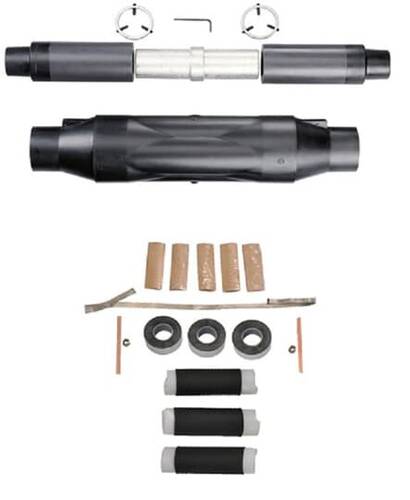

Thomas & Betts 35PCJ2-J1230-H1210-S 35kv Splice-pcj W-sealing Kit
$1,237.94
Thomas & Betts #: 35PCJ2-J1230-H1210-S
SKU: ABBI35PCJ2-J1230-H1210-S
UPC: 075114356138
SKU: ABBI35PCJ2-J1230-H1210-S
UPC: 075114356138
| Number Of Conductors: | 2 |
| Color: | Black |
| Application: | For Direct Burial, Vault, Submersible and Other Severe Service Applications |
| Connection: | Compression |
| Insulation: | yes |
| Material: | EPDM Rubber |
| Size: | 14-3/8 inch long |
| Special Features: | Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to e |
| Standard: | IEEE Standard 404 |
| Type: | Power Cable Joint |
| Voltage Rating: | 35 kV |
| Temperature Rating: | -40 to +65 C |
| Enclosure: | Yes |
| Environmental Conditions: | Fully Insulated, Shielded and Sealed for Direct-Burial, Vault, Submersible and other Severe Service Applications |
| Conductor Range: | #1 STR AWG , 1/0 SOL AWG , #3 STR AWG , #2 SOL AWG |
