Thomas & Betts 35kv Splice-pcj W-sealing Kit
Thomas & Betts #:35PCJ2-J1230-H1210-S
SKU: ABBI35PCJ2-J1230-H1210-S
UPC: 075114356138
SKU: ABBI35PCJ2-J1230-H1210-S
UPC: 075114356138
Your Price: $1,237.94 / EA
Thomas & Betts 35kv Splice-pcj W-sealing Kit
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description

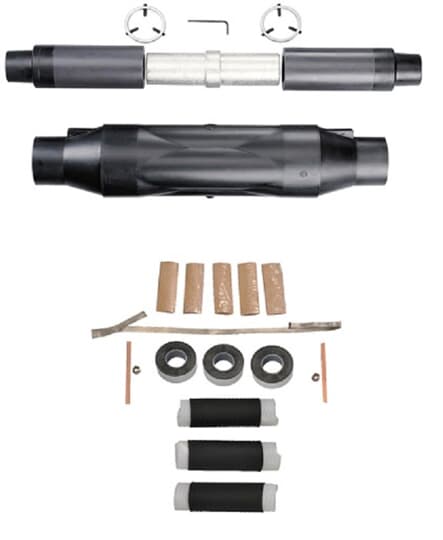

35kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Conductor. Conductor Size AWG Stranded #1 or Solid 1/0. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Conductor. Conductor Size AWG Stranded #3 or Solid #2. Includes Cold-Shrinkable Jacket Seal.
| Number Of Conductors: | 2 |
| Color: | Black |
| Application: | For Direct Burial, Vault, Submersible and Other Severe Service Applications |
| Connection: | Compression |
| Insulation: | yes |
| Material: | EPDM Rubber |
| Size: | 14-3/8 inch long |
| Special Features: | Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to e |
| Standard: | IEEE Standard 404 |
| Type: | Power Cable Joint |
| Voltage Rating: | 35 kV |
| Temperature Rating: | -40 to +65 C |
| Enclosure: | Yes |
| Environmental Conditions: | Fully Insulated, Shielded and Sealed for Direct-Burial, Vault, Submersible and other Severe Service Applications |
| Conductor Range: | #1 STR AWG , 1/0 SOL AWG , #3 STR AWG , #2 SOL AWG |
