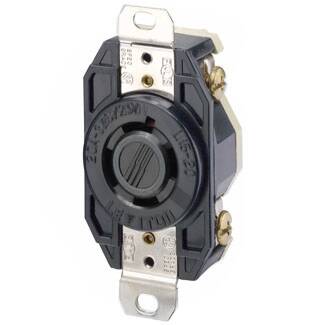

Leviton 2410-B ENT BLK L14-20R
$0.00
Leviton #: 2410-B
SKU: LEVI2410-B
UPC: 078477131107
SKU: LEVI2410-B
UPC: 078477131107
| Color: | Black |
| Size: | 3.63 H x 1.69 W x 1.31 D IN |
| Amperage Rating: | 20 AMP |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Mounting: | Box |
| Application: | Commercial |
| Dielectric Strength: | 2000 (Min.) |
| Voltage Rating: | 125;250 |
| Temperature Rating: | -40 to +60 DEG C |
| Connection: | Back Wired;Side Wired |
| Standard: | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| Environmental Conditions: | Flammability (Rated V-2, Rated V-0 per UL94) |
| Type: | Flush Mount Locking Receptacle |
| Wire Size: | 14-8 |
| Material: | PBT |
| NEMA Rating: | L14-20R |
