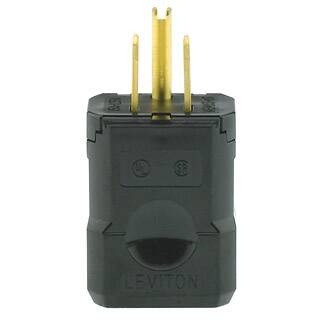

Leviton 5256-VBM PYTHON PLUG C/I BULK
$11.98
Leviton #: 5256-VBM
SKU: LEVI5256-VBM
UPC: 078477863596
SKU: LEVI5256-VBM
UPC: 078477863596
| Size: | 1.81 H x 1.41 W x 1.22 D IN |
| Voltage Rating: | 125 |
| Amperage Rating: | 15 AMP |
| Number of Wires: | 3 |
| Number of Poles: | 2 |
| Mounting: | Cable |
| NEMA Rating: | 5-15P |
| Application: | Industrial |
| Environmental Conditions: | Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C) |
| Type: | Straight Blade Plug |
| Material: | Super Tough Nylon (Body) |
| Standard: | NEMA (WD-1, WD-6);ANSI C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13393) |
| Wire Size: | 18-10 AWG (Terminal Accommodation);.250-.655 IN (Cord Grip Range) |
