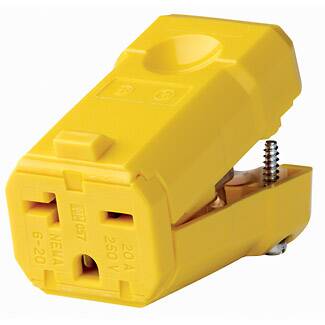

Leviton 5459-VY 6-20R PYTHO CONN YLW
$28.42
Leviton #: 5459-VY
SKU: LEVI5459-VY
UPC: 078477055137
SKU: LEVI5459-VY
UPC: 078477055137
| Size: | 1.41 L x 1.23 W x 2.50 H IN |
| Material: | Nylon |
| Color: | Yellow |
| Application: | Industrial |
| Conductor Range: | 18-10 |
| Environmental Conditions: | Flammability (Rated V-2 per UL94) |
| Number of Conductors: | 3 |
| Number of Poles: | 2 |
| Standard: | NEMA (WD-1, WD-6);NOM Certified (057);ANSI (C-73);CSA C22 2 No.42 (File LR-406);UL Listed 498 (E13399) |
| Type: | Hinged Connector |
| Amperage Rating: | 20 AMP |
| NEMA Rating: | 6-20R |
| Voltage Rating: | 250 |
