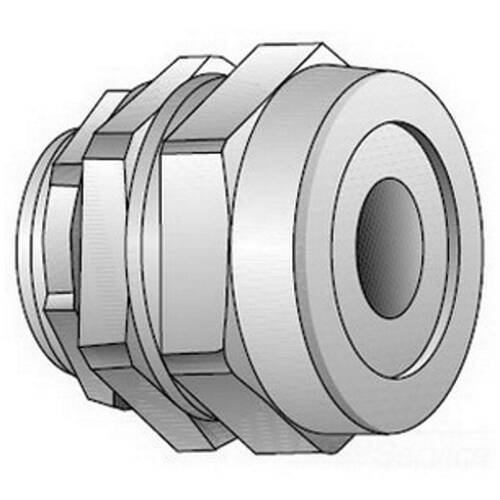

O-Z/Gedney SR-505 1/2 IN STR STRAIN RLF CONN
$8.55
O-Z/Gedney #: SR-505
SKU: OZGESR-505
UPC: 783126507355
SKU: OZGESR-505
UPC: 783126507355
| Size: | 1/2 in |
| Temperature Rating: | 90 DEG C |
| Application: | For Securing And Sealing Cords And Cables Entering Enclosures Or Raceways |
| Finish: | Zinc Plated |
| Type: | Type SR Gold Seal Strain Relief Straight Connector |
| Standard: | Third Party Certification: UL File Number E-11857, CSA 009795 |
| Connection: | MNPT |
| Material: | Malleable Iron, PVC Grommets |
| Special Features: | Provide strain relief to protect the cord or cable; Watertight/oiltight; UL listed NEMA 4, 6 and 12 when installed into a NPT threaded entry or UL listed conduit hub |
| Conductor Range: | 0.4 - 0.5 |
