Your Price: $8.55 / EA

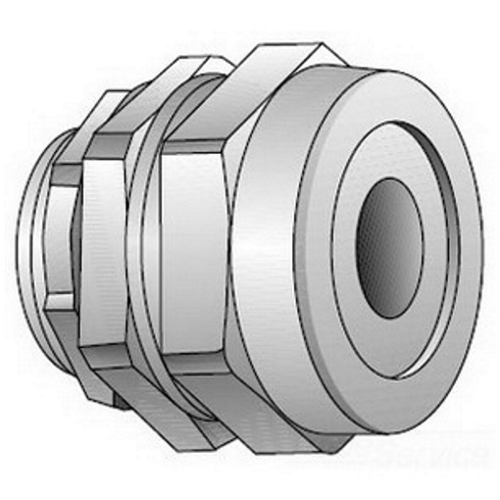

O-Z/Gedney 1/2 IN STR STRAIN RLF CONN
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1/2 IN STR STRAIN RLF CONN
Specification Sheet
Warranty
Detailed Description
OZ-Gedney Type SR Gold Seal Strain Relief Straight Connector, Size: 1/2 IN, Conductor Range: 0.4 - 0.5 IN, Malleable Iron, PVC Grommets, Finish: Zinc Plated, 90 DEG C, Connection: MNPT, 0.61 IN Throat Inside Diameter, 9/16 IN Thread Length, Dimensi
| Size: | 1/2 in |
| Temperature Rating: | 90 DEG C |
| Application: | For Securing And Sealing Cords And Cables Entering Enclosures Or Raceways |
| Finish: | Zinc Plated |
| Type: | Type SR Gold Seal Strain Relief Straight Connector |
| Standard: | Third Party Certification: UL File Number E-11857, CSA 009795 |
| Connection: | MNPT |
| Material: | Malleable Iron, PVC Grommets |
| Special Features: | Provide strain relief to protect the cord or cable; Watertight/oiltight; UL listed NEMA 4, 6 and 12 when installed into a NPT threaded entry or UL listed conduit hub |
| Conductor Range: | 0.4 - 0.5 |
