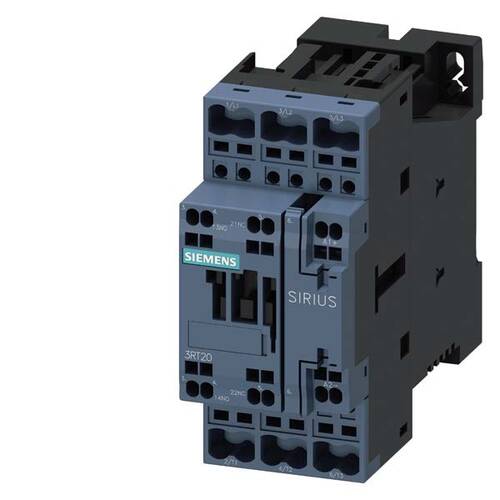

Siemens Industry 3RT20252BP40 CONT..AC3:7.5KW 1NO+1NC DC 230V

$311.47
View Full Details
Siemens Industry #: 3RT20252BP40
SKU: SIEM3RT20252BP40
UPC: 804766251924
Operating current / at DC-13 / at 125 V / rated value: 0.9 A
Protection class IP / of the terminal: IP20
Operating current / at DC-13 / at 440 V / rated value: 0.14 A
Operating current / at AC-15 / at 500 V / rated value: 2 A
Operating current / at DC-13 / at 220 V / rated value: 0.3 A
Operating current / at DC-13 / at 600 V / rated value: 0.1 A
Type of connectable conductor cross-sections / for main contacts / solid: 2x(1...10mm)
Connectable conductor cross-section / for main contacts / stranded / minimum: 1 mm2
Operating current / at AC-1 / at 400 V / at ambient temperature 40 C / rated value: 40 A
Operating current / for approx. 200000 operating cycles / at AC-4 / at 400 V / rated value: 7.7 A
Connectable conductor cross-section / for main contacts / solid / minimum: 1 mm2
Connectable conductor cross-section / for main contacts / stranded / maximum: 10 mm2
Operating power / for approx. 200000 operating cycles / at AC-4 / at 690 V / rated value: 6 kW
Operating power / for approx. 200000 operating cycles / at AC-4 / at 400 V / rated value: 3.5 kW
Operating current / for approx. 200000 operating cycles / at AC-4 / at 690 V / rated value: 7.7 A
