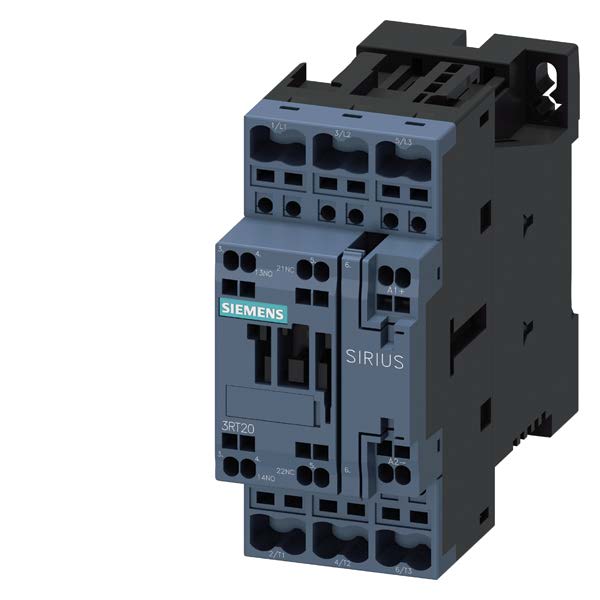

Siemens Industry CONT..AC3:7.5KW 1NO+1NC DC 230V
Siemens Industry #:3RT20252BP40
SKU: SIEM3RT20252BP40
UPC: 804766251924
SKU: SIEM3RT20252BP40
UPC: 804766251924
Your Price: $311.47 / EA
Siemens Industry CONT..AC3:7.5KW 1NO+1NC DC 230V
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product CONT..AC3:7.5KW 1NO+1NC DC 230V
Specification Sheet
Detailed Description
Contactor. AC-3. 7.5KW/400v. 1NO+1NC. DC 230v. 3-pole. sz s0 spring-loaded terminal
| Operating current / at DC-13 / at 125 V / rated value: | 0.9 A |
| Protection class IP / of the terminal: | IP20 |
| Operating current / at DC-13 / at 440 V / rated value: | 0.14 A |
| Operating current / at AC-15 / at 500 V / rated value: | 2 A |
| Operating current / at DC-13 / at 220 V / rated value: | 0.3 A |
| Operating current / at DC-13 / at 600 V / rated value: | 0.1 A |
| Type of connectable conductor cross-sections / for main contacts / solid: | 2x(1...10mm) |
| Connectable conductor cross-section / for main contacts / stranded / minimum: | 1 mm2 |
| Operating current / at AC-1 / at 400 V / at ambient temperature 40 C / rated value: | 40 A |
| Operating current / for approx. 200000 operating cycles / at AC-4 / at 400 V / rated value: | 7.7 A |
| Connectable conductor cross-section / for main contacts / solid / minimum: | 1 mm2 |
| Connectable conductor cross-section / for main contacts / stranded / maximum: | 10 mm2 |
| Operating power / for approx. 200000 operating cycles / at AC-4 / at 690 V / rated value: | 6 kW |
| Operating power / for approx. 200000 operating cycles / at AC-4 / at 400 V / rated value: | 3.5 kW |
| Operating current / for approx. 200000 operating cycles / at AC-4 / at 690 V / rated value: | 7.7 A |
