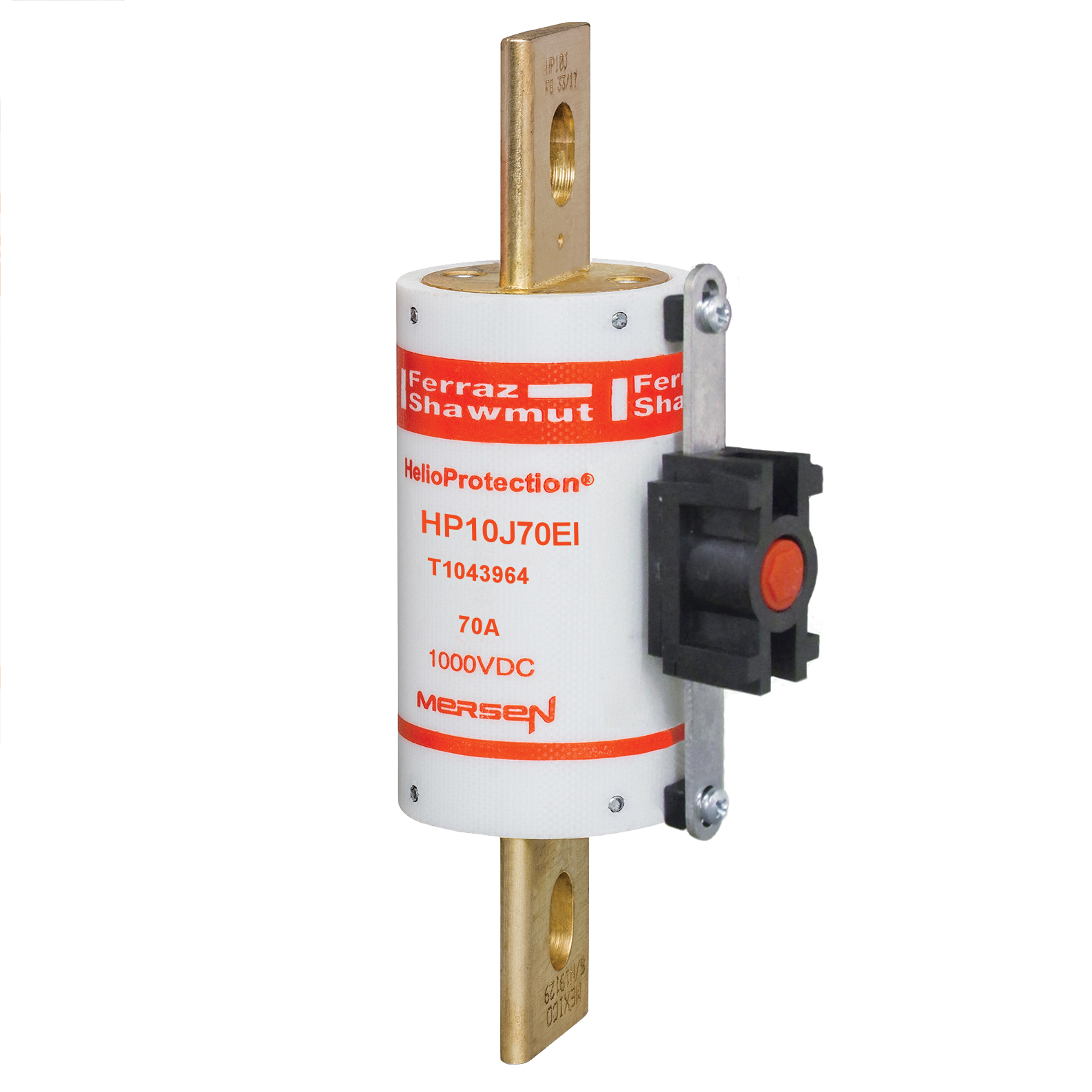

Mersen PV Fuse gPV 1000VDC UL 70A With EI Indicator Blade Clip or Bolted
Mersen #:HP10J70EI
SKU: MERSHP10J70EI
UPC: 782001460297
SKU: MERSHP10J70EI
UPC: 782001460297
Your Price: $420.75 / EA
Mersen PV Fuse gPV 1000VDC UL 70A With EI Indicator Blade Clip or Bolted
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product PV Fuse gPV 1000VDC UL 70A With EI Indic
Specification Sheet
Detailed Description
Photovoltaic fuse gPV 1000VDC UL 70A With EI Indicator With Blade For Clip or Bolted
| AC Voltage Rating: | 600 V |
| Body Material: | GMG |
| Connection Material: | Brass |
| DC Voltage Rating: | 1000 V |
| Class: | Photovoltaic |
| Connection: | Blade |
| Interrupt Rating: | 200 kA |
| Mounting: | Clip or Bolted |
| Amperage Rating: | 70 A |
| Type: | Photovoltaic Fuses |
| Size: | 5.75 x 1.63 in |
| Application: | Re-combiner box (sub-combiner, array combiner, master combiner) applications Inverter DC input Battery charge controllers |
| Special Features: | UL Listed to standard 2579 Photovoltaic Fuses Smallest available footprint in the industry Enlarged mounting holes Low fault current interrupting capability Durable construction for enhanced system longevity Temperature cycle withstand capability Guarant |
| Standard: | UL listed to UL listed to Standard 248 File E333668 (70A to 600A) File E2137 (70A to 400A) CSA Component Certified C22.2 (70A to 400A) |
| Voltage Rating: | 1000 VDC |
| Type Of Indicators: | EI Indicator |
