NSi Industries POLARIS Vision Tap Splice 1/0
NSi Industries #:ISR-1/0C
SKU: NSIIISR-1/0C
UPC: 662381996459
SKU: NSIIISR-1/0C
UPC: 662381996459
Your Price: $29.41 / EA
NSi Industries POLARIS Vision Tap Splice 1/0
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product POLARIS Vision Tap Splice 1/0
Specification Sheet
Detailed Description

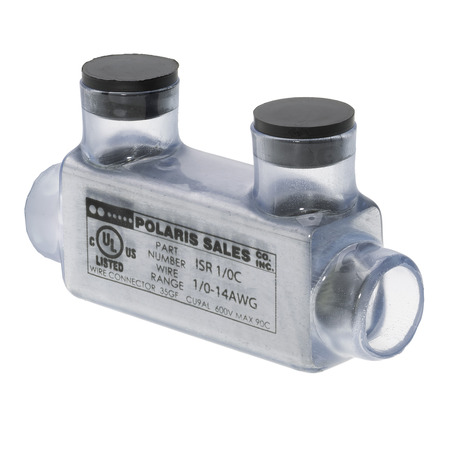

The Polaris ISR-1/0C Multi-Tap In-line Entry Vision Tap Connector features 2 ports sized for 1/0 - 14 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
| Wire/Cable Class: | Class B, Class C |
| Aluminum Conductor Max AMP: | 135 Amp |
| Voltage Rating: | 600 V |
| Color: | Clear |
| Application: | Wire Termination |
| Material: | Aluminum |
| Number Of Poles: | 1 |
| Temperature Rating: | 90 C |
| Number Of Conductors: | 2 |
| Standard: | UL 486A/B |
| Wire Size: | 1/0-14 AWG |
| Finish: | Plastisol Insulated |
| Type: | IN-Line Splicer/Reducer |
| Size: | Lequals3.250 - Wequals.900 - Hequals1.480 IN |
| Enclosure: | Clear Plastisol |
| Environmental Conditions: | Dry Location Only |
| Special Features: | 1/0-14 AWG - Dual Rated |
