NSi Industries POLARIS Vision Tap 600 4 Port DSE
NSi Industries #:IPLD600-4C
SKU: NSIIIPLD600-4C
UPC: 662381996787
SKU: NSIIIPLD600-4C
UPC: 662381996787
Your Price: $130.24 / EA

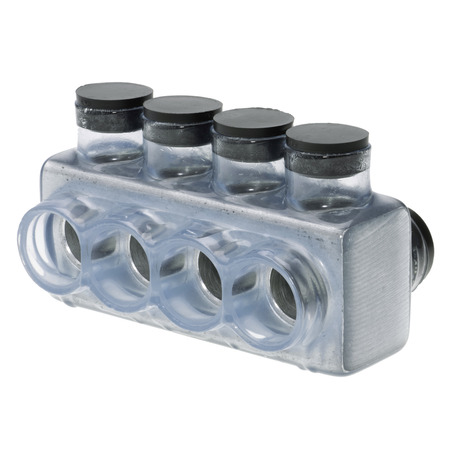

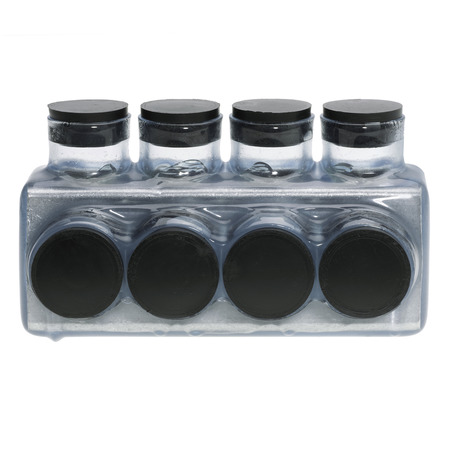

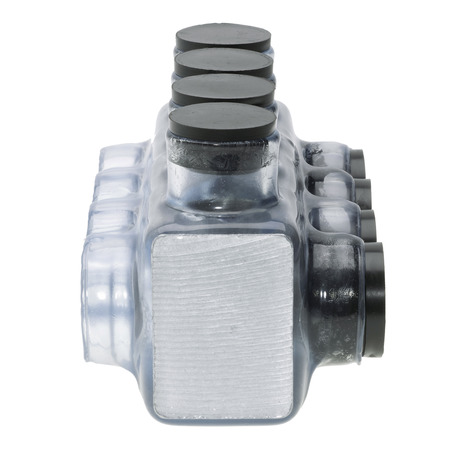

NSi Industries POLARIS Vision Tap 600 4 Port DSE
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product POLARIS Vision Tap 600 4 Port DSE
Specification Sheet
Detailed Description
The Polaris IPLD500-4C Multi-Tap Dual-Sided Entry Vision Tap Connector features 4 ports sized for 600 MCM - 6 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
| Warranty: | 1 Year |
| Wire/Cable Class: | Class B, Class C |
| Voltage Rating: | 600 V |
| Color: | Clear |
| Application: | Wire Termination |
| Material: | Aluminum |
| Number Of Poles: | 1 |
| Temperature Rating: | 90 C |
| Standard: | UL 486A/B |
| Wire Type: | Class B & C |
| Number Of Conductors: | 4 |
| Finish: | Plastisol Insulated |
| Type: | Double Sided Entry |
| Special Features: | (4) 600 MCM-6 AWG - Dual Rated |
| Size: | Lequals5.850 - Wequals2.960 - Hequals3.030 IN |
| Enclosure: | Clear Plastisol |
| Environmental Conditions: | Dry Location Only |
