NSi Industries POLARIS Vision Tap 500 3 Port DSE
NSi Industries #:IPLD500-3C
SKU: NSIIIPLD500-3C
UPC: 662381996589
SKU: NSIIIPLD500-3C
UPC: 662381996589
Your Price: $96.83 / EA
NSi Industries POLARIS Vision Tap 500 3 Port DSE
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product POLARIS Vision Tap 500 3 Port DSE
Specification Sheet
Detailed Description

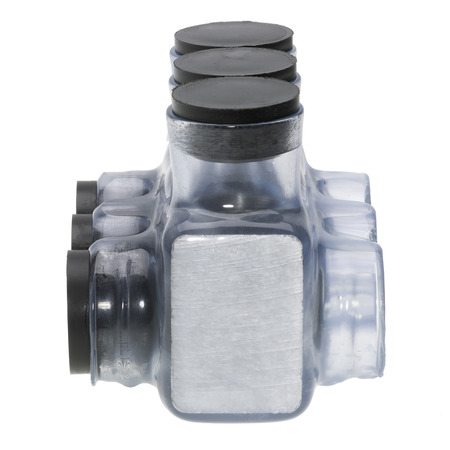

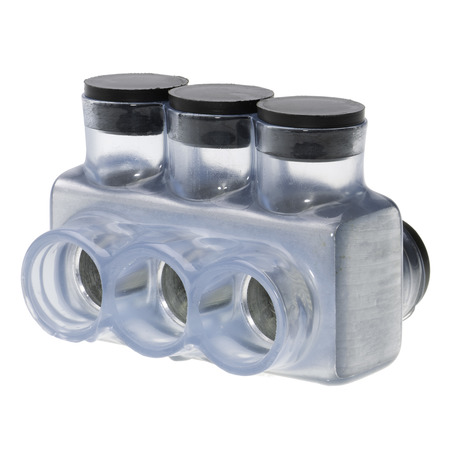

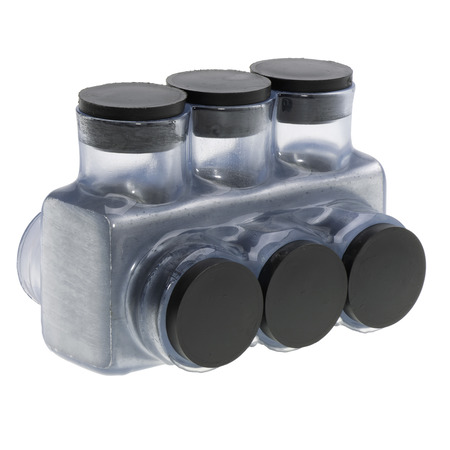

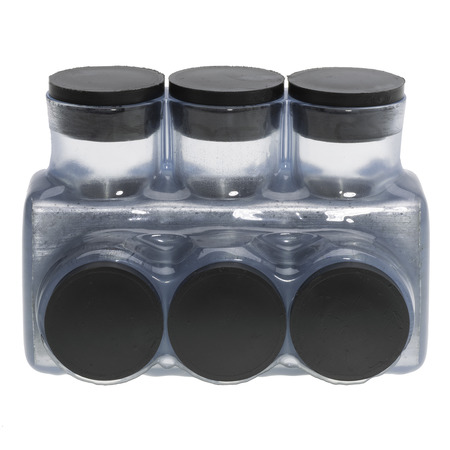

The Polaris IPLD500-3C Multi-Tap Dual-Sided Entry Vision Tap Connector features 3 ports sized for 500 MCM - 4 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
| Warranty: | 1 Year |
| Copper Conductor Max: | 430 Amp |
| Voltage Rating: | 600 V |
| Color: | Clear |
| Application: | Wire Termination |
| Material: | Aluminum |
| Number Of Poles: | 1 |
| Temperature Rating: | 90 C |
| Number Of Conductors: | 3 |
| Standard: | UL 486A/B |
| Wire Type: | Class B & C |
| Wire Size: | 500 MCM-4 AWG |
| Type: | Double Sided Entry |
| Size: | Lequals4.010 - Wequals2.830 - Hequals2.910 IN |
| Special Features: | (3) 500 MCM-4 AWG - Dual Rated |
| Enclosure: | Clear Plastisol |
| Environmental Conditions: | Dry Location Only |
