Panduit Pan-Term PV10-8RX-L Loose Piece Ring Te
Panduit #:PV10-8RX-L
SKU: PANDPV10-8RX-L
UPC: 749838017018
SKU: PANDPV10-8RX-L
UPC: 749838017018
Your Price: $0.00
Panduit Pan-Term PV10-8RX-L Loose Piece Ring Te
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product Pan-Term PV10-8RX-L Loose Piece Ring Te
Specification Sheet
Detailed Description

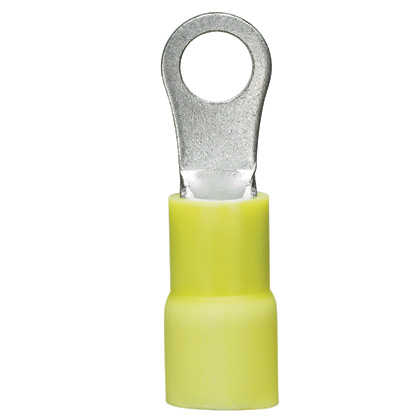

Ring Terminal, 12 10 AWG, #8 stud size, vinyl insulated, expanded insulation for large wire O.D., standard package.
| Voltage Rating: | 600 V |
| Finish: | Tin-Plated |
| Material: | Copper |
| Color: | Yellow |
| Mounting: | 5/16 In. |
| Wire Size: | #10 AWG |
| Standard: | UL Listed 587H E52164, CSA Certified LR31212 |
| Type: | Ring Terminal |
| Size: | #8 |
| Insulation: | Vinyl |
| Temperature Rating: | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Enclosure: | Ring shape |
| Connection: | Expanded Entry |
